Gear manufacturing for small to mid-sized OEMs
Custom and standard gears cut and machined in our Hudson, Ohio shop, in steel, alloy and hardened steel, stainless, brass, bronze, copper, aluminum, cast iron and non-metallic materials.
CNC gear hobbing and CNC gear shaping
We now cut gears in-house on CNC hobbing and CNC shaping machines: hobbing for external spur and helical gears, worm gears, splines and sprockets; shaping for internal gears, internal splines and gears cut close to a shoulder. That means repeatable quality and more control over delivery.
Want the tools and machines rather than finished gears? Our sister company CTI-USA supplies gear hobs, shaper cutters, broaches and Eifco CNC gear hobbing and power skiving machines.
Dependable delivery
Standard lead time is eight to ten weeks, with expediting available for an additional charge. Breakdown service, blanket orders and stocking plans keep your line running.
Technical support
Every Rhino gear is backed by our engineers, who are available to discuss your application and gear requirements.
High quality
Skilled craftsmen, quality materials and premium tooling deliver custom gears that meet or exceed OEM requirements.
Fair price
An efficient workflow, skilled team and fast turnaround make Rhino gears affordable and reliable.
What we make

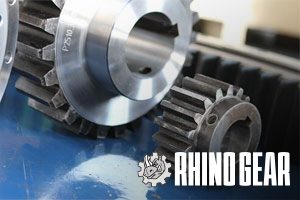

Spur Gears
Pitch diameter: ½" to 49"
View →Helical Gears
Pitch diameter: ½" to 50"
View →Internal Gears
Inner diameter: 1" to 34"
View →Worms & Worm Gears
Pitch diameter: ½" to 49"
View →Splines
Internal: inner diameter: 1" to 34"
View →Sprockets & Pulleys
Chain sprockets: ANSI 35 to 200, single or multi-strand
View →Size ranges
| Product | Capability |
|---|---|
| Spur Gears | Pitch diameter: ½" to 49" Diametral pitch: 1½ to 64 (17 to 0.4 module) Face width: ⅛" to 24" Cutting method: CNC gear hobbing or CNC gear shaping |
| Helical Gears | Pitch diameter: ½" to 50" Diametral pitch: 1½ to 64 (17 to 0.4 module) Face width: ¼" to 24" Hand: Right or left Cutting method: CNC gear hobbing or CNC gear shaping |
| Internal Gears | Inner diameter: 1" to 34" Diametral pitch: 3 to 64 (8.5 to 0.4 module) Face width: Up to 6" Cutting method: CNC gear shaping |
| Worms & Worm Gears | Pitch diameter: ½" to 49" Diametral pitch: 3 to 24 Materials: Hardened steel, bronze, non-metallic Cutting method: CNC gear hobbing |
| Splines | Internal: inner diameter: 1" to 34" Internal: diametral pitch: 3 to 64 External: outer diameter: ½" to 49", max length 24" External: diametral pitch: 3 to 64 Cutting method: External: CNC hobbing. Internal: CNC shaping or broaching |
| Sprockets & Pulleys | Chain sprockets: ANSI 35 to 200, single or multi-strand Pulleys: V-belt, round belt, flat belt, multi-groove and timing belt Sheaves: Wire rope Size range: ½" to 49" Cutting method: CNC gear hobbing |
In our shop
- CNC and manual gear hobbing
- CNC and manual gear shaping
- CNC turning, milling and mill-turn
- Broaching
- Shafts, pinions and custom machined parts
- Reverse engineering from sample parts
Through qualified partners
- Heat treating, induction and flame hardening, nitriding
- Plating
- OD, ID, face and tooth-profile grinding
Partner work is managed by our team: one purchase order, one point of contact.
See all capabilities →Engineering guides
Practical articles from our engineers on specifying, installing and maintaining these parts.
Custom Gears 101: Gear Types, How They Are Made and When Custom Makes Sense
The main gear types and where each is used, how custom gears are manufactured, and when a gear made to your print beats a standard catalog g
Read the guide →Pinions Should Never Be an Afterthought: Matching the Pinion to a Geared Slewing Ring
Why the pinion should be specified with the geared slewing ring, the bore and mounting types to choose from, and what has to match for the g
Read the guide →The ROI of Custom Machining: When Tight Tolerances Make All the Difference
Discover how precision machining delivers measurable ROI through smoother rotation, reduced vibration, lower wear rates, and 2-3× extended s
Read the guide →The Future of Gearing Technology: Trends and Innovations to Watch
Explore the future of gearing technology with trends like smart sensors, advanced materials, and predictive maintenance. Discover how these
Read the guide →Talk to an engineer
Send us a print, a sample or a worn part. Our engineers will quote it, usually within 1–2 business days.
Not in the catalog? We design to your application, with no engineering charge.
