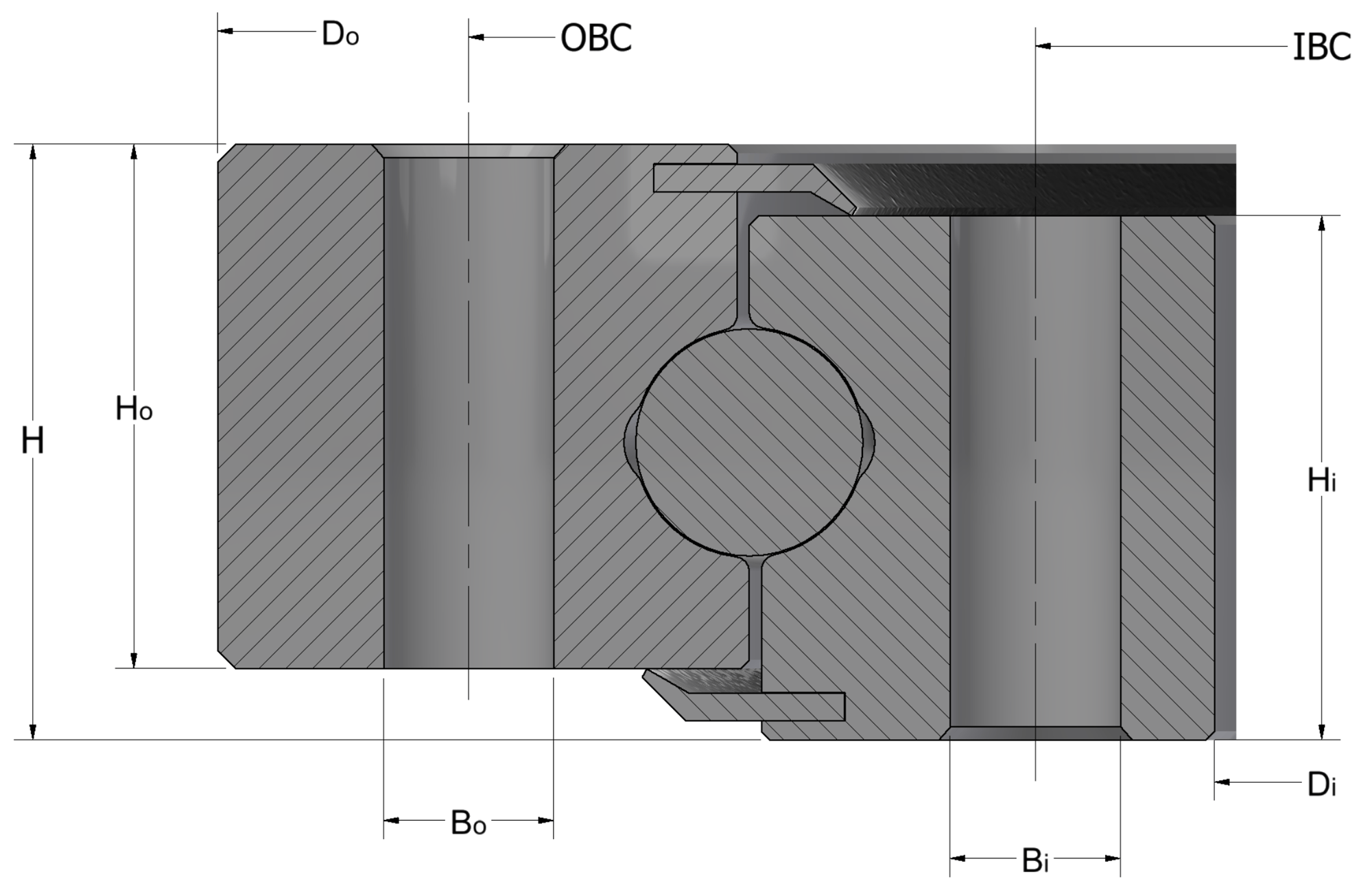

| Overall Dimensions | |
|---|---|
|
Outside Diameter (Do)
|
20.486 in. |
|
Inside Diameter (Di)
|
12.75 in. |
| Overall Height (H) | 2.062 in. |
| Ring Height (Hi/Ho) | 2.022 in. |
| Weight | 98 lbs. |
| Mounting Holes | |
|---|---|
|
Outer Bolt Circle Diameter (OBC)
|
18.875 in. |
| OBC Hole Count | 20 |
|
OBC Hole Diameter (Bo)
|
5/8-11 UNC |
|
Inner Bolt Circle Diameter (IBC)
|
14.375 in. |
| IBC Hole Count | 20 |
|
IBC Hole Diameter (Bi)
|
5/8-11 UNC |
| Gear Data | |
|---|---|
| Tooth Form | FS |
| Pressure Angle | 20° |
| Pitch Diameter | 20.2 in. |
| Diametral Pitch | 5/7 |
| Tooth Count | 101 |
| Face Width | 2.022 in. |
| Max Gear Tooth Load | 8700 lbs. |
| Load Capacities | |
|---|---|
| Static Axial Capacity | 330805 |
| Static Radial Capacity | 104739 |
| Static Moment Capacity | 96017 |
We produce precision-engineered mating pinions designed to work seamlessly with our bearings. Contact us to have a member of our team help you find the right pinion.
