FWA SeriesRatio 104:1
FWA25 Slewing Drive
Full-throat worm slewing drives with cup seal. A full-throat worm with the face sealed by a cup seal instead of a lip seal, for a better sealing arrangement up to IP65 against dust and water. Single or double worm (double the torque), self-locking or non-self-locking, metric or inch mounting.
Performance
| Model | FWA25 |
|---|---|
| Series | FWA Series |
| Type | Full-throat worm slewing drives with cup seal |
| Max. output torque | 34,200 N·m (25,226 lbf-ft) |
| Max. tilting moment | 310,000 N·m (228,656 lbf-ft) |
| Holding torque | 160,000 N·m (118,016 lbf-ft) |
| Max. axial load | 2,400 kN (539,520 lbf) |
| Max. radial load | 950 kN (213,560 lbf) |
| Gear ratio | 104:1 |
| Tracking precision | ≤ 0.1° |
| Backlash | 0.1° |
| Unit weight | 440.9 lb (200 kg) |
Maximum ratings. Our engineers will confirm the drive for your duty cycle.
Load chart

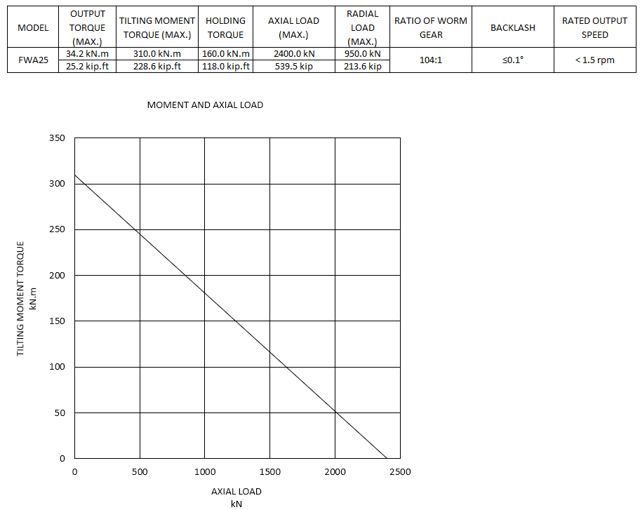

Tilting moment vs. axial load. Click to enlarge.
Get this drive
Standard lead time 14–16 weeks; expediting available for an additional charge. Pricing quoted within 1–2 business days. 3D models available on request.
Request a Quote14 FWA25 configurations on file
Drives we have already engineered: with hydraulic motors, DC gear motors, SEW-EURODRIVE or NORD AC gear motors integrated in-house, planetary gearboxes, encoders and brakes, or built to mate with the customer’s own gearbox or motor. Click a configuration to see what it includes. Need something different? New designs are added often.
FWA25-104B-BH-RCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 1.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 104:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA25-104BT-25H-LCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 1.5 rpm |
| Input | 25 mm keyed bore |
| Worm far end | Hex head (manual drive) |
| Worm hand | Left hand |
| Ratio | 104:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Inner ring through holes, outer ring blind threaded holes |
| 3D model | Available on request |
FWA25-104BT-25H-RCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 1.5 rpm |
| Input | 25 mm keyed bore |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 104:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Inner ring through holes, outer ring blind threaded holes |
| 3D model | Available on request |
FWA25-104M-25H-LCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 1.5 rpm |
| Input | 25 mm keyed bore |
| Worm far end | Hex head (manual drive) |
| Worm hand | Left hand |
| Ratio | 104:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA25-104M-BH-R-P115320Customer-supplied gearbox or motor
| Designed to mate with | Customer unit P115320 |
|---|---|
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 104:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA25-104M-BH-L-RZ77AMS56Gear reducer with NEMA 56 motor adapter
| Motor / gearbox make | SEW-EURODRIVE |
|---|---|
| Output speed | < 1.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Left hand |
| Ratio | 104:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA25-104M-BH-L-RZ77AMS56-01Gear reducer with NEMA 56 motor adapter
| Motor / gearbox make | SEW-EURODRIVE |
|---|---|
| Output speed | < 1.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Left hand |
| Ratio | 104:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA25-104M-BE-R-WS200-D-C005Hydraulic motor
| Hydraulic pressure | 13.8 MPa (2,002 psi) |
|---|---|
| Hydraulic flow | 23 L/min (6.1 gpm) |
| Output speed | 1 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Encoder interface |
| Worm hand | Right hand |
| Ratio | 104:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Version | Customer-specific variant |
| 3D model | Available on request |
FWA25-104M-BH-R-375-AHydraulic motor
| Hydraulic motor | 375 cc/rev displacement |
|---|---|
| Motor ports | away from worm housing |
| Hydraulic pressure | 8 MPa (1,160 psi) |
| Hydraulic flow | 30 L/min (7.9 gpm) |
| Output speed | 0.68 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 104:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA25-104M-BH-R-375Z1-A-C005Hydraulic motor with brake
| Hydraulic motor | 375 cc/rev displacement |
|---|---|
| Brake | Yes |
| Motor ports | away from worm housing |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 104:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Version | Customer-specific variant |
| Counterbalance valve | Fitted to the hydraulic motor (Z1, recommended) |
| 3D model | Available on request |
FWA25-104M-BH-R-375Z1-D-C005Hydraulic motor with brake
| Hydraulic motor | 375 cc/rev displacement |
|---|---|
| Brake | Yes |
| Motor ports | toward bottom mounting face |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 104:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Version | Customer-specific variant |
| Counterbalance valve | Fitted to the hydraulic motor (Z1, recommended) |
| 3D model | Available on request |
FWA25-104B-BH-R-SK172.1Z-71LP4NORD electric gear motor
| Motor / gearbox make | NORD |
|---|---|
| Output speed | < 1.45 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 104:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA25-104B-BH-R-SK372.1Z-80LPNORD electric gear motor
| Motor / gearbox make | NORD |
|---|---|
| Brake | Yes |
| Output speed | < 2.53 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 104:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA25-104M-BH-R-FZ27DRN7SEW-EURODRIVE electric gear motor
| Motor / gearbox make | SEW-EURODRIVE |
|---|---|
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 104:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
