FWA SeriesRatio 94:1
FWA19 Slewing Drive
Full-throat worm slewing drives with cup seal. A full-throat worm with the face sealed by a cup seal instead of a lip seal, for a better sealing arrangement up to IP65 against dust and water. Single or double worm (double the torque), self-locking or non-self-locking, metric or inch mounting.
Performance
| Model | FWA19 |
|---|---|
| Series | FWA Series |
| Type | Full-throat worm slewing drives with cup seal |
| Max. output torque | 18,500 N·m (13,646 lbf-ft) |
| Max. tilting moment | 196,000 N·m (144,570 lbf-ft) |
| Holding torque | 82,000 N·m (60,483 lbf-ft) |
| Max. axial load | 1,810 kN (406,888 lbf) |
| Max. radial load | 675 kN (151,740 lbf) |
| Gear ratio | 94:1 |
| Backlash | 0.1° |
| Unit weight | 264.6 lb (120 kg) |
Maximum ratings. Our engineers will confirm the drive for your duty cycle.

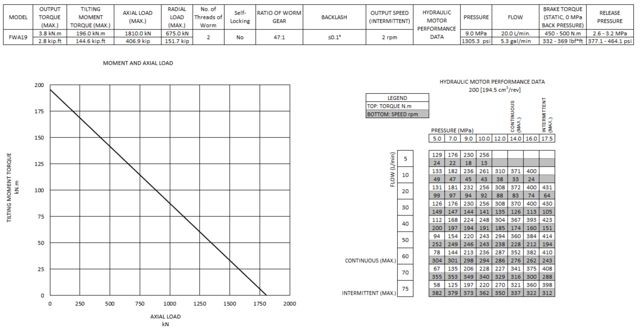

Load chart
Tilting moment vs. axial load. Click to enlarge.
Get this drive
Standard lead time 14–16 weeks; expediting available for an additional charge. Pricing quoted within 1–2 business days. 3D models available on request.
Request a Quote14 FWA19 configurations on file
Drives we have already engineered: with hydraulic motors, DC gear motors, SEW-EURODRIVE or NORD AC gear motors integrated in-house, planetary gearboxes, encoders and brakes, or built to mate with the customer’s own gearbox or motor. Click a configuration to see what it includes. Need something different? New designs are added often.
FWA19-47B-BH-RCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Self-locking | No |
| Output speed | < 2.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 47:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA19-94B-BH-LCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 2.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Left hand |
| Ratio | 94:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA19-94B-BH-RCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 2.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 94:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA19-94B-HL-C005-S142Customer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 2.5 rpm |
| Worm far end | Hex head (manual drive) |
| Worm hand | Left hand |
| Ratio | 94:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Version | Customer-specific variant |
| 3D model | Available on request |
FWA19-94B-HR-C005-S142Customer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 2.5 rpm |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 94:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Version | Customer-specific variant |
| 3D model | Available on request |
FWA19-94M-BH-RCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 2.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 94:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA19-94MT-25H-LCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 2.5 rpm |
| Input | 25 mm keyed bore |
| Worm far end | Hex head (manual drive) |
| Worm hand | Left hand |
| Ratio | 94:1 |
| Mounting threads | Metric |
| Mounting holes | Inner ring through holes, outer ring blind threaded holes |
| 3D model | Available on request |
FWA19-47M-BE-R-BM3Y-200-D-C005Hydraulic motor
| Hydraulic motor | 200 cc/rev displacement |
|---|---|
| Motor ports | toward bottom mounting face |
| Hydraulic pressure | 20 MPa (2,901 psi) |
| Hydraulic flow | 30 L/min (7.9 gpm) |
| Self-locking | No |
| Output speed | 1.3 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Encoder interface |
| Worm hand | Right hand |
| Ratio | 47:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Version | Customer-specific variant |
| 3D model | Available on request |
FWA19-94B-BH-R-200-AHydraulic motor
| Hydraulic motor | 200 cc/rev displacement |
|---|---|
| Motor ports | away from worm housing |
| Hydraulic pressure | 14 MPa (2,031 psi) |
| Hydraulic flow | 30 L/min (7.9 gpm) |
| Output speed | 1.3 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 94:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA19-94M-BH-R-EVB-090-3-10-K4-19FB15AHydraulic motor
| Hydraulic motor | 090 cc/rev displacement |
|---|---|
| Output speed | < 2.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 94:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA19-47B-BH-L-200Z2Hydraulic motor with brake
| Hydraulic motor | 200 cc/rev displacement |
|---|---|
| Brake | Integrated hydraulic brake (spring applied, pressure released) |
| Brake torque | 450 - 500 N·m |
| Brake release pressure | 2.6 - 3.2 MPa |
| Hydraulic pressure | 9 MPa (1,305 psi) |
| Hydraulic flow | 20 L/min (5.3 gpm) |
| Self-locking | No |
| Output speed | 2 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Left hand |
| Ratio | 47:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Counterbalance valve | Not fitted; the motor has the interface for a valve assembly (Z2) |
| 3D model | Available on request |
FWA19-47M-BH-R-BM3Y-315Z1-D-C005Hydraulic motor with brake
| Hydraulic motor | 315 cc/rev displacement |
|---|---|
| Brake | Integrated hydraulic brake (spring applied, pressure released) |
| Brake torque | 580-630 N·m |
| Brake release pressure | 3.2-3.8 Mpa |
| Motor ports | toward bottom mounting face |
| Hydraulic pressure | 14 MPa (2,031 psi) |
| Hydraulic flow | 30 L/min (7.9 gpm) |
| Self-locking | No |
| Output speed | 1.8 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 47:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Version | Customer-specific variant |
| Counterbalance valve | Fitted to the hydraulic motor (Z1, recommended) |
| 3D model | Available on request |
FWA19-94B-BH-R-RF27DSEW-EURODRIVE electric gear motor
| Motor / gearbox make | SEW-EURODRIVE |
|---|---|
| Output speed | < 2.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 94:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA19-94B-BH-R-RF37.EDRN71MS4SEW-EURODRIVE electric gear motor
| Motor / gearbox make | SEW-EURODRIVE |
|---|---|
| Output speed | < 2.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 94:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
