FWA SeriesRatio 104:1
FWA17 Slewing Drive
Full-throat worm slewing drives with cup seal. A full-throat worm with the face sealed by a cup seal instead of a lip seal, for a better sealing arrangement up to IP65 against dust and water. Single or double worm (double the torque), self-locking or non-self-locking, metric or inch mounting.
Performance
| Model | FWA17 |
|---|---|
| Series | FWA Series |
| Type | Full-throat worm slewing drives with cup seal |
| Max. output torque | 12,960 N·m (9,559 lbf-ft) |
| Max. tilting moment | 142,400 N·m (105,034 lbf-ft) |
| Holding torque | 74,000 N·m (54,582 lbf-ft) |
| Max. axial load | 1,166 kN (262,117 lbf) |
| Max. radial load | 435 kN (97,788 lbf) |
| Gear ratio | 104:1 |
| Tracking precision | ≤ 0.1° |
| Backlash | 0.1° |
| Unit weight | 213.8 lb (97 kg) |
Maximum ratings. Our engineers will confirm the drive for your duty cycle.

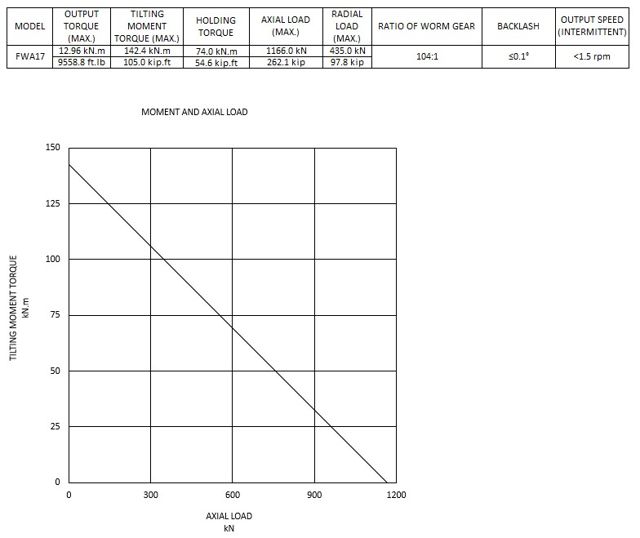

Load chart
Tilting moment vs. axial load. Click to enlarge.
Get this drive
Standard lead time 14–16 weeks; expediting available for an additional charge. Pricing quoted within 1–2 business days. 3D models available on request.
Request a Quote22 FWA17 configurations on file
Drives we have already engineered: with hydraulic motors, DC gear motors, SEW-EURODRIVE or NORD AC gear motors integrated in-house, planetary gearboxes, encoders and brakes, or built to mate with the customer’s own gearbox or motor. Click a configuration to see what it includes. Need something different? New designs are added often.
FWA17-104B-25.4H-RCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Self-locking | No |
| Output speed | <1.5 rpm |
| Input | 25.4 mm keyed bore (1 in) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 104:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA17-104B-BH-LCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Self-locking | No |
| Output speed | <1.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Left hand |
| Ratio | 104:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA17-104B-BH-RCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Self-locking | No |
| Output speed | <1.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 104:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA17-104B-BH-R-SPCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Self-locking | No |
| Output speed | <3 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 104:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA17-104M-25-RLCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 2.5 rpm |
| Input | 25 mm keyed bore |
| Worm hand | Right and left |
| Ratio | 104:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA17-104M-25H-RCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 2.5 rpm |
| Input | 25 mm keyed bore |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 104:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA17-104M-BE-R-C005Customer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 2.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Encoder interface |
| Worm hand | Right hand |
| Ratio | 104:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Version | Customer-specific variant |
| 3D model | Available on request |
FWA17-104M-BH-LCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 2.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Left hand |
| Ratio | 104:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA17-104M-BH-L-1FG1500-1RD44Customer-supplied gearbox or motor
| Designed to mate with | Customer unit 1FG1500-1RD44 |
|---|---|
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
| Output speed | < 2.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Left hand |
| Ratio | 104:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA17-104M-BH-L-3941Customer-supplied gearbox or motor
| Designed to mate with | Customer unit 3941 |
|---|---|
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
| Output speed | < 2.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Left hand |
| Ratio | 104:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA17-104M-BH-L-KL102PF0040MQCustomer-supplied gearbox or motor
| Designed to mate with | Customer unit KL102PF0040MQ |
|---|---|
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
| Output speed | < 2.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Left hand |
| Ratio | 104:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA17-104M-BH-RCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 2.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 104:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA17-104M-BH-R-IFSACustomer-supplied gearbox or motor
| Designed to mate with | Customer unit IFSA |
|---|---|
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
| Output speed | < 2.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 104:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA17-104M-BH-R-MCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 2.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 104:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA17-104M-BH-R-SPCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 2.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 104:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA17-104M-HL-C005(R120)Customer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 2.5 rpm |
| Worm far end | Hex head (manual drive) |
| Worm hand | Left hand |
| Ratio | 104:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Version | Customer-specific variant |
| 3D model | Available on request |
FWA17-104BD-BH-2R-200-AHydraulic motor
| Hydraulic motor | 200 cc/rev displacement |
|---|---|
| Motor ports | away from worm housing |
| Hydraulic pressure | 9 MPa (1,305 psi) |
| Output speed | 0.9 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm shafts | 2 (double torque) |
| Worm hand | Right hand |
| Ratio | 104:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Inner ring through threaded holes, outer ring blind threaded holes |
| 3D model | Available on request |
FWA17-52B-BH-L-200Z2Hydraulic motor with brake
| Hydraulic motor | 200 cc/rev displacement |
|---|---|
| Brake | Integrated hydraulic brake (spring applied, pressure released) |
| Brake torque | 450 - 500 N·m |
| Brake release pressure | 2.6 - 3.2 MPa |
| Hydraulic pressure | 9 MPa (1,305 psi) |
| Hydraulic flow | 20 L/min (5.3 gpm) |
| Self-locking | No |
| Output speed | 1.81 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Left hand |
| Ratio | 52:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Counterbalance valve | Not fitted; the motor has the interface for a valve assembly (Z2) |
| 3D model | Available on request |
FWA17-104M-BH-R-SK172.1Z-71L4NORD electric gear motor
| Motor / gearbox make | NORD |
|---|---|
| Output speed | < 2.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 104:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA17-104M-BH-R-ATB170FL11Planetary gearbox (servo motor ready)
| Motor / gearbox make | APEX Dynamics |
|---|---|
| Output speed | < 2.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 104:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA17-104M-BH-R-NPS025S-MF1-10Planetary gearbox (servo motor ready)
| Motor / gearbox make | WITTENSTEIN |
|---|---|
| Output speed | < 2.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 104:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA17-104B-BH-R-KF37CMP40M-PK-RH1M-SM1SEW-EURODRIVE servo gear motor
| Motor / gearbox make | SEW-EURODRIVE |
|---|---|
| Self-locking | No |
| Output speed | <2.2 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 104:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
