FWA SeriesRatio 86:1
FWA14 Slewing Drive
Full-throat worm slewing drives with cup seal. A full-throat worm with the face sealed by a cup seal instead of a lip seal, for a better sealing arrangement up to IP65 against dust and water. Single or double worm (double the torque), self-locking or non-self-locking, metric or inch mounting.
Performance
| Model | FWA14 |
|---|---|
| Series | FWA Series |
| Type | Full-throat worm slewing drives with cup seal |
| Max. output torque | 10,800 N·m (7,966 lbf-ft) |
| Max. tilting moment | 71,200 N·m (52,517 lbf-ft) |
| Holding torque | 49,500 N·m (36,511 lbf-ft) |
| Max. axial load | 960 kN (215,808 lbf) |
| Max. radial load | 360 kN (80,928 lbf) |
| Gear ratio | 86:1 |
| Tracking precision | ≤ 0.13° |
| Backlash | 0.13° |
| Unit weight | 165.3 lb (75 kg) |
Maximum ratings. Our engineers will confirm the drive for your duty cycle.
Load chart
Tilting moment vs. axial load. Click to enlarge.
Get this drive
Standard lead time 14–16 weeks; expediting available for an additional charge. Pricing quoted within 1–2 business days. 3D models available on request.
Request a Quote17 FWA14 configurations on file
Drives we have already engineered: with hydraulic motors, DC gear motors, SEW-EURODRIVE or NORD AC gear motors integrated in-house, planetary gearboxes, encoders and brakes, or built to mate with the customer’s own gearbox or motor. Click a configuration to see what it includes. Need something different? New designs are added often.
FWA14-86B-BH-R-1.5A320-B1024 V DC electric gear motor
| Electric motor | 24 V DC gear motor, 1.5 rpm, 320 N·m rated output torque |
|---|---|
| Output speed | < 1.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 86:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA14-43M-BH-RCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Self-locking | No |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 43:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA14-86B-BH-2RCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 2.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm shafts | 2 (double torque) |
| Worm hand | Right hand |
| Ratio | 86:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA14-86B-BH-RCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 1.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 86:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA14-86M-25H-RCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 1.5 rpm |
| Input | 25 mm keyed bore |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 86:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA14-43M-BH-RNEMA-56Hydraulic motor
| Hydraulic motor | 56 cc/rev displacement |
|---|---|
| Self-locking | No |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Ratio | 43:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA14-86B-B-E-R-50-A-C005Hydraulic motor
| Hydraulic motor | 50 cc/rev displacement |
|---|---|
| Motor ports | away from worm housing |
| Hydraulic pressure | 10 MPa (1,450 psi) |
| Hydraulic flow | 5 L/min (1.3 gpm) |
| Output speed | 0.89 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm hand | Right hand |
| Ratio | 86:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Version | Customer-specific variant |
| 3D model | Available on request |
FWA14-86B-BH-2R-160-AHydraulic motor
| Hydraulic motor | 160 cc/rev displacement |
|---|---|
| Motor ports | away from worm housing |
| Hydraulic pressure | 9 MPa (1,305 psi) |
| Hydraulic flow | 20 L/min (5.3 gpm) |
| Output speed | 0.67 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm shafts | 2 (double torque) |
| Worm hand | Right hand |
| Ratio | 86:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA14-86B-BH-L-100-AHydraulic motor
| Hydraulic motor | 100 cc/rev displacement |
|---|---|
| Motor ports | away from worm housing |
| Hydraulic pressure | 10 MPa (1,450 psi) |
| Hydraulic flow | 10 L/min (2.6 gpm) |
| Output speed | 1.06 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Left hand |
| Ratio | 86:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA14-86B-BH-L-50-AHydraulic motor
| Hydraulic motor | 50 cc/rev displacement |
|---|---|
| Motor ports | away from worm housing |
| Hydraulic pressure | 10 MPa (1,450 psi) |
| Hydraulic flow | 10 L/min (2.6 gpm) |
| Output speed | 1.9 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Left hand |
| Ratio | 86:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA14-86B-BH-R-100-AHydraulic motor
| Hydraulic motor | 100 cc/rev displacement |
|---|---|
| Motor ports | away from worm housing |
| Hydraulic pressure | 10 MPa (1,450 psi) |
| Hydraulic flow | 10 L/min (2.6 gpm) |
| Output speed | 1.06 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 86:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA14-86B-R-160-AHydraulic motor
| Hydraulic motor | 160 cc/rev displacement |
|---|---|
| Motor ports | away from worm housing |
| Hydraulic pressure | 9 MPa (1,305 psi) |
| Hydraulic flow | 10 L/min (2.6 gpm) |
| Output speed | 0.67 rpm |
| Worm hand | Right hand |
| Ratio | 86:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA14-86B-R-160-A-SPHydraulic motor
| Hydraulic motor | 160 cc/rev displacement |
|---|---|
| Motor ports | away from worm housing |
| Hydraulic pressure | 9 MPa (1,305 psi) |
| Hydraulic flow | 10 L/min (2.6 gpm) |
| Output speed | 0.67 rpm |
| Worm hand | Right hand |
| Ratio | 86:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |

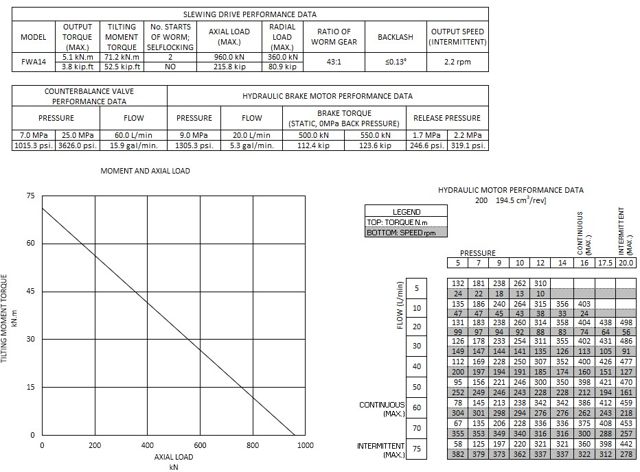

FWA14-43M-BH-R-200Z1-DHydraulic motor with brake
| Hydraulic motor | 200 cc/rev displacement |
|---|---|
| Brake | Yes |
| Motor ports | toward bottom mounting face |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 43:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Counterbalance valve | Fitted to the hydraulic motor (Z1, recommended) |
| 3D model | Available on request |
FWA14-86B-BH-R-172.1ZNORD electric gear motor
| Motor / gearbox make | NORD |
|---|---|
| Motor power | 1/2 HP |
| Output speed | < .51 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 86:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA14-86B-BH-R-SK172NORD electric gear motor
| Motor / gearbox make | NORD |
|---|---|
| Motor power | 1-1/2 HP |
| Brake | Yes |
| Output speed | 3 rpm MAX |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 86:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA14-86B-BH-R-SK1SI50-56CNORD electric gear motor
| Motor / gearbox make | NORD |
|---|---|
| Motor power | 3/4 HP |
| Output speed | < .50 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 86:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
Talk to an engineer
Need help selecting the right part? Our engineers will size it, cross it, and quote it — usually within 1–2 business days.
Not in the catalog? We design to your application, with no engineering charge.
