FWA SeriesRatio 79:1
FWA12 Slewing Drive
Full-throat worm slewing drives with cup seal. A full-throat worm with the face sealed by a cup seal instead of a lip seal, for a better sealing arrangement up to IP65 against dust and water. Single or double worm (double the torque), self-locking or non-self-locking, metric or inch mounting.
Performance
| Model | FWA12 |
|---|---|
| Series | FWA Series |
| Type | Full-throat worm slewing drives with cup seal |
| Max. output torque | 9,500 N·m (7,007 lbf-ft) |
| Max. tilting moment | 57,000 N·m (42,043 lbf-ft) |
| Holding torque | 44,300 N·m (32,676 lbf-ft) |
| Max. axial load | 760 kN (170,848 lbf) |
| Max. radial load | 280 kN (62,944 lbf) |
| Gear ratio | 79:1 |
| Tracking precision | ≤ 0.15° |
| Backlash | 0.15° |
| Unit weight | 147.7 lb (67 kg) |
Maximum ratings. Our engineers will confirm the drive for your duty cycle.
Load chart

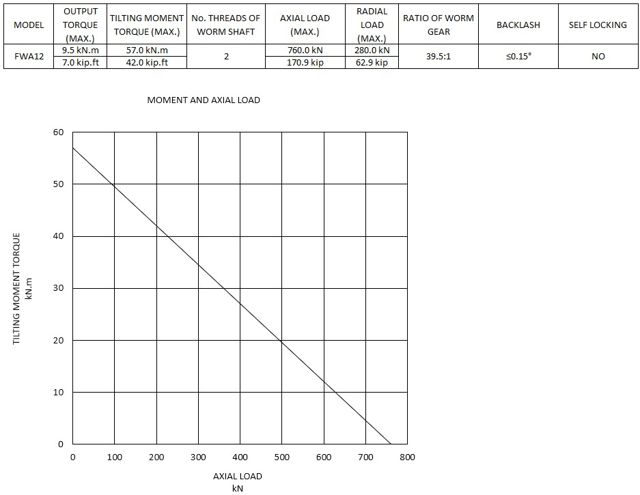

Tilting moment vs. axial load. Click to enlarge.
Get this drive
Standard lead time 14–16 weeks; expediting available for an additional charge. Pricing quoted within 1–2 business days. 3D models available on request.
Request a Quote19 FWA12 configurations on file
Drives we have already engineered: with hydraulic motors, DC gear motors, SEW-EURODRIVE or NORD AC gear motors integrated in-house, planetary gearboxes, encoders and brakes, or built to mate with the customer’s own gearbox or motor. Click a configuration to see what it includes. Need something different? New designs are added often.
FWA12-79B-BH-R-MMP-D33-455A-12V12 V DC electric gear motor
| Motor / gearbox make | MMP |
|---|---|
| Output speed | 0.52 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 79:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA12-39.5M-BH-L-C005Customer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Self-locking | No |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Left hand |
| Ratio | 39.5:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Version | Customer-specific variant |
| 3D model | Available on request |
FWA12-39.5M-BH-RCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Self-locking | No |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 39.5:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA12-79B-BH-RCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | 1.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 79:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA12-79M-25-RLCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 1.5 rpm |
| Input | 25 mm keyed bore |
| Worm hand | Right and left |
| Ratio | 79:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA12-79M-25H-RCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 1.5 rpm |
| Input | 25 mm keyed bore |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 79:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA12-79M-BH-LCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 1.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Left hand |
| Ratio | 79:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA12-79M-BH-RCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | 1.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 79:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA12-79M-BH-R-36LYE047Customer-supplied gearbox or motor
| Designed to mate with | Customer unit 36LYE047 |
|---|---|
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
| Brake | Yes |
| Output speed | 1.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 79:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA12-79M-BH-R-EG34-G5-D13Customer-supplied gearbox or motor
| Designed to mate with | Customer unit EG34-G5-D13 |
|---|---|
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
| Output speed | < 5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 79:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA12-79M-HR-C005(S86)Customer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 1.5 rpm |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 79:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Version | Customer-specific variant |
| 3D model | Available on request |
FWA12-79B-BE-R-200-A-C005Hydraulic motor
| Hydraulic motor | 200 cc/rev displacement |
|---|---|
| Motor ports | away from worm housing |
| Hydraulic pressure | 9 MPa (1,305 psi) |
| Hydraulic flow | 20 L/min (5.3 gpm) |
| Output speed | 1.2 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Encoder interface |
| Worm hand | Right hand |
| Ratio | 79:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Version | Customer-specific variant |
| 3D model | Available on request |
FWA12-79M-BH-R-160-AHydraulic motor
| Hydraulic motor | 160 cc/rev displacement |
|---|---|
| Motor ports | away from worm housing |
| Hydraulic pressure | 9 MPa (1,305 psi) |
| Hydraulic flow | 10 L/min (2.6 gpm) |
| Output speed | 0.73 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 79:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA12-79M-BH-R-80-AHydraulic motor
| Hydraulic motor | 80 cc/rev displacement |
|---|---|
| Motor ports | away from worm housing |
| Hydraulic pressure | 10 MPa (1,450 psi) |
| Hydraulic flow | 7 L/min (1.8 gpm) |
| Output speed | 1 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 79:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA12-79M-25H-R-SK 071.1Z-71SP4NORD electric gear motor
| Motor / gearbox make | NORD |
|---|---|
| Output speed | < 3.94 rpm |
| Input | 25 mm keyed bore |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 79:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA12-79M-BH-L-SK372.1F-90LPNORD electric gear motor
| Motor / gearbox make | NORD |
|---|---|
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Left hand |
| Ratio | 79:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA12-79M-BH-R-SK.920072.1NORD electric gear motor
| Motor / gearbox make | NORD |
|---|---|
| Brake | Yes |
| Output speed | 1.16 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 79:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA12-79M-BH-R-SK172.1ZNORD electric gear motor
| Motor / gearbox make | NORD |
|---|---|
| Output speed | 0.53 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 79:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FWA12-79M-BH-R-RZ17DRN80MK4.SEW-EURODRIVE electric gear motor
| Motor / gearbox make | SEW-EURODRIVE |
|---|---|
| Output speed | < 4.065 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 79:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
