FR110 Slewing Drive
Rotation drives with pinion output. An enclosed worm gearbox with an external pinion output (spur or spline) that drives your own ring gear or slewing bearing. Pinion size and tooth form are built to suit the gear it meshes with.
Performance
| Model | FR110 |
|---|---|
| Series | FR Series |
| Type | Rotation drives with pinion output |
| Max. output torque | 1,600 N·m (1,180 lbf-ft) |
| Gear ratio | 39:1 |
| Unit weight | 57.3 lb (26 kg) |
Maximum ratings. Our engineers will confirm the drive for your duty cycle.
Load chart
Tilting moment vs. axial load. Click to enlarge.
Get this drive
Standard lead time 14–16 weeks; expediting available for an additional charge. Pricing quoted within 1–2 business days. 3D models available on request.
Request a Quote1 FR110 configuration on file
Drives we have already engineered: with hydraulic motors, DC gear motors, SEW-EURODRIVE or NORD AC gear motors integrated in-house, planetary gearboxes, encoders and brakes, or built to mate with the customer’s own gearbox or motor. Click a configuration to see what it includes. Need something different? New designs are added often.

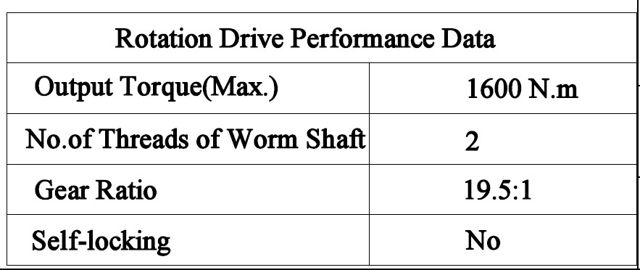

FR110-19.5-BH-R-C005(s16-32z30)Customer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Version | Customer-specific variant |
| Ratio | 94:1 |
| 3D model | Available on request |
Talk to an engineer
Need help selecting the right part? Our engineers will size it, cross it, and quote it — usually within 1–2 business days.
Not in the catalog? We design to your application, with no engineering charge.
