FGO21 Slewing Drive
Open-housing slewing drives. A slewing ring, open housing and hourglass worm. Lower maintenance cost than enclosed drives and easy to install.
Performance
| Model | FGO21 |
|---|---|
| Series | FGO Series |
| Type | Open-housing slewing drives |
| Max. output torque | 11,400 N·m (8,409 lbf-ft) |
| Max. tilting moment | 203,000 N·m (149,733 lbf-ft) |
| Holding torque | 106,000 N·m (78,186 lbf-ft) |
| Max. axial load | 1,600 kN (359,680 lbf) |
| Max. radial load | 650 kN (146,120 lbf) |
| Gear ratio | 125:1 |
| Backlash | 0.15° |
Maximum ratings. Our engineers will confirm the drive for your duty cycle.

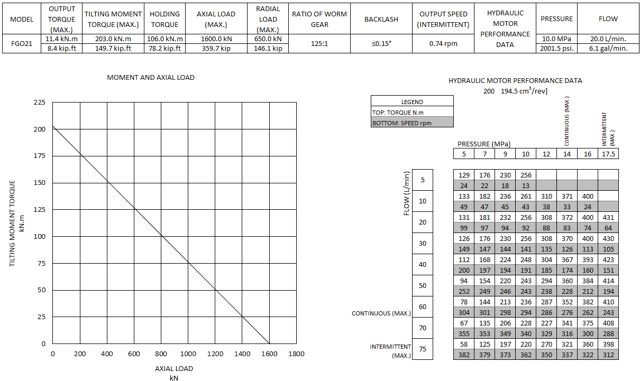

Load chart
Tilting moment vs. axial load. Click to enlarge.
Get this drive
Standard lead time 14–16 weeks; expediting available for an additional charge. Pricing quoted within 1–2 business days. 3D models available on request.
Request a Quote2 FGO21 configurations on file
Drives we have already engineered: with hydraulic motors, DC gear motors, SEW-EURODRIVE or NORD AC gear motors integrated in-house, planetary gearboxes, encoders and brakes, or built to mate with the customer’s own gearbox or motor. Click a configuration to see what it includes. Need something different? New designs are added often.
FGO21-125B-BH-R-200-AHydraulic motor
| Hydraulic motor | 200 cc/rev displacement |
|---|---|
| Motor ports | away from worm housing |
| Hydraulic pressure | 10 MPa (1,450 psi) |
| Hydraulic flow | 20 L/min (5.3 gpm) |
| Output speed | 0.74 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 125:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FGO21-125BC-BE1-L-200-AHydraulic motor
| Hydraulic motor | 200 cc/rev displacement |
|---|---|
| Motor ports | away from worm housing |
| Hydraulic pressure | 10 MPa (1,450 psi) |
| Hydraulic flow | 20 L/min (5.3 gpm) |
| Encoder | Absolute encoder |
| Output speed | 0.74 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Encoder interface |
| Worm shafts | 1 |
| Worm hand | Left hand |
| Ratio | 125:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Through threaded holes on inner and outer rings |
| 3D model | Available on request |
