FGO17 Slewing Drive
Open-housing slewing drives. A slewing ring, open housing and hourglass worm. Lower maintenance cost than enclosed drives and easy to install.
Performance
| Model | FGO17 |
|---|---|
| Series | FGO Series |
| Type | Open-housing slewing drives |
| Max. output torque | 10,000 N·m (7,376 lbf-ft) |
| Max. tilting moment | 135,600 N·m (100,019 lbf-ft) |
| Holding torque | 73,000 N·m (53,845 lbf-ft) |
| Max. axial load | 980 kN (220,304 lbf) |
| Max. radial load | 400 kN (89,920 lbf) |
| Gear ratio | 102:1 |
| Tracking precision | ≤ 0.17° |
| Backlash | 0.15° |
| Unit weight | 187.4 lb (85 kg) |
Maximum ratings. Our engineers will confirm the drive for your duty cycle.
Load chart

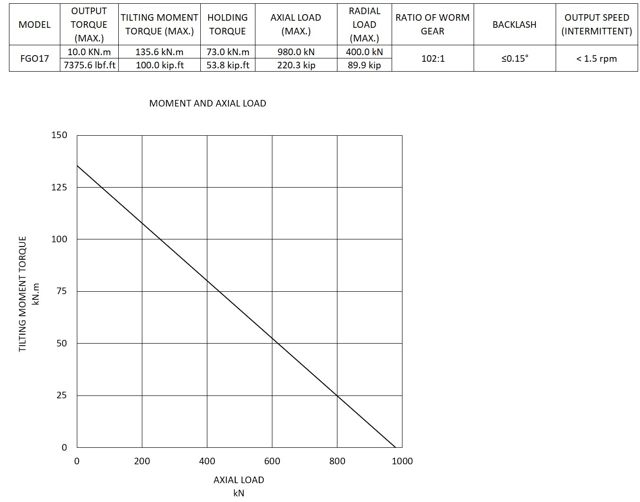

Tilting moment vs. axial load. Click to enlarge.
Get this drive
Standard lead time 14–16 weeks; expediting available for an additional charge. Pricing quoted within 1–2 business days. 3D models available on request.
Request a Quote4 FGO17 configurations on file
Drives we have already engineered: with hydraulic motors, DC gear motors, SEW-EURODRIVE or NORD AC gear motors integrated in-house, planetary gearboxes, encoders and brakes, or built to mate with the customer’s own gearbox or motor. Click a configuration to see what it includes. Need something different? New designs are added often.
FGO17-102B-25.4S-LCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 1.5 rpm |
| Input | 25.4 mm keyed bore (1 in) |
| Worm far end | Standard end cap |
| Worm hand | Left hand |
| Ratio | 102:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FGO17-102B-25.4S-RCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 1.5 rpm |
| Input | 25.4 mm keyed bore (1 in) |
| Worm far end | Standard end cap |
| Worm hand | Right hand |
| Ratio | 102:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FGO17-102M-BH-R-160-DHydraulic motor
| Hydraulic motor | 160 cc/rev displacement |
|---|---|
| Motor ports | toward bottom mounting face |
| Hydraulic pressure | 9 MPa (1,305 psi) |
| Hydraulic flow | 20 L/min (5.3 gpm) |
| Output speed | 1 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 102:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FGO17-102M-BH-R-160Z1-D-C005Hydraulic motor with brake
| Hydraulic motor | 160 cc/rev displacement |
|---|---|
| Brake | Integrated hydraulic brake (spring applied, pressure released) |
| Brake torque | 500 - 550 N·m |
| Brake release pressure | 1.7 - 2.2 MPa |
| Motor ports | toward bottom mounting face |
| Hydraulic pressure | 10 MPa (1,450 psi) |
| Hydraulic flow | 20 L/min (5.3 gpm) |
| Output speed | 1.1 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 102:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Version | Customer-specific variant |
| Counterbalance valve | Fitted to the hydraulic motor (Z1, recommended) |
| 3D model | Available on request |
