FGO14 Slewing Drive
Open-housing slewing drives. A slewing ring, open housing and hourglass worm. Lower maintenance cost than enclosed drives and easy to install.
Performance
| Model | FGO14 |
|---|---|
| Series | FGO Series |
| Type | Open-housing slewing drives |
| Max. output torque | 8,000 N·m (5,901 lbf-ft) |
| Max. tilting moment | 67,800 N·m (50,009 lbf-ft) |
| Holding torque | 49,000 N·m (36,142 lbf-ft) |
| Max. axial load | 555 kN (124,764 lbf) |
| Max. radial load | 222 kN (49,906 lbf) |
| Gear ratio | 85:1 |
| Tracking precision | ≤ 0.17° |
| Backlash | 0.17° |
| Unit weight | 121.3 lb (55 kg) |
Maximum ratings. Our engineers will confirm the drive for your duty cycle.
Load chart

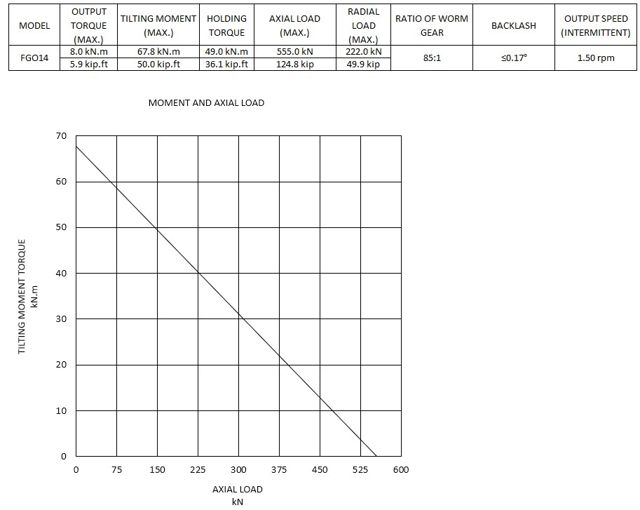

Tilting moment vs. axial load. Click to enlarge.
Get this drive
Standard lead time 14–16 weeks; expediting available for an additional charge. Pricing quoted within 1–2 business days. 3D models available on request.
Request a Quote5 FGO14 configurations on file
Drives we have already engineered: with hydraulic motors, DC gear motors, SEW-EURODRIVE or NORD AC gear motors integrated in-house, planetary gearboxes, encoders and brakes, or built to mate with the customer’s own gearbox or motor. Click a configuration to see what it includes. Need something different? New designs are added often.
FGO14-85B-25.4H-RCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | 1.5 rpm |
| Input | 25.4 mm keyed bore (1 in) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 85:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FGO14-85MC-BH-R-160-AHydraulic motor
| Hydraulic motor | 160 cc/rev displacement |
|---|---|
| Motor ports | away from worm housing |
| Hydraulic pressure | 10 MPa (1,450 psi) |
| Hydraulic flow | 20 L/min (5.3 gpm) |
| Output speed | 1.27 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 85:1 |
| Mounting threads | Metric |
| Mounting holes | Through threaded holes on inner and outer rings |
| 3D model | Available on request |
FGO14-85MC-BH-R-160-A-C005Hydraulic motor
| Hydraulic motor | 160 cc/rev displacement |
|---|---|
| Motor ports | away from worm housing |
| Hydraulic pressure | 10 MPa (1,450 psi) |
| Hydraulic flow | 20 L/min (5.3 gpm) |
| Output speed | 1.27 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 85:1 |
| Mounting threads | Metric |
| Mounting holes | Through threaded holes on inner and outer rings |
| Version | Customer-specific variant |
| 3D model | Available on request |
FGO14-85MC-BH-R-80-AHydraulic motor
| Hydraulic motor | 80 cc/rev displacement |
|---|---|
| Motor ports | away from worm housing |
| Hydraulic pressure | 7 MPa (1,015 psi) |
| Hydraulic flow | 22.7 L/min (6.0 gpm) |
| Output speed | 3 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 85:1 |
| Mounting threads | Metric |
| Mounting holes | Through threaded holes on inner and outer rings |
| 3D model | Available on request |
FGO14-85MC-BH-R-SK93172.1AB-80S-4Hydraulic motor
| Hydraulic pressure | 10 MPa (1,450 psi) |
|---|---|
| Hydraulic flow | 20 L/min (5.3 gpm) |
| Output speed | 4.68 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 85:1 |
| Mounting threads | Metric |
| Mounting holes | Through threaded holes on inner and outer rings |
| 3D model | Available on request |
