FGD3B Slewing Drive
Two slewing drives combined for two-axis positioning. Two worm slewing drives mounted at 90° in one assembly, each with its own motor, to rotate and tilt a payload on two axes. Available with hard stops and zero marks for limited-travel positioning.
Performance
| Model | FGD3B |
|---|---|
| Series | Dual-Axis Drives (FGD, FDA) |
| Type | Two slewing drives combined for two-axis positioning |
| Max. output torque | 400 N·m (295 lbf-ft) |
| Max. tilting moment | 1,100 N·m (811 lbf-ft) |
| Holding torque | 2,000 N·m (1,475 lbf-ft) |
| Max. axial load | 30 kN (6,744 lbf) |
| Max. radial load | 16.6 kN (3,732 lbf) |
| Gear ratio | 62:1 |
| Backlash | 0.2° |
Maximum ratings. Our engineers will confirm the drive for your duty cycle.

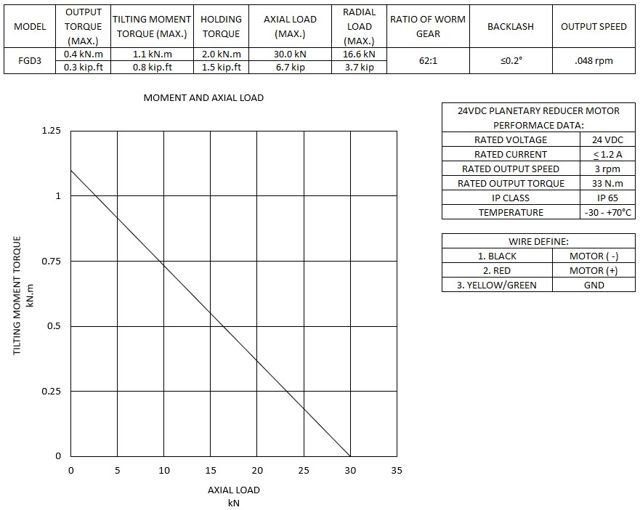

Load chart
Tilting moment vs. axial load. Click to enlarge.
Get this drive
Standard lead time 14–16 weeks; expediting available for an additional charge. Pricing quoted within 1–2 business days. 3D models available on request.
Request a Quote1 FGD3B configuration on file
Drives we have already engineered: with hydraulic motors, DC gear motors, SEW-EURODRIVE or NORD AC gear motors integrated in-house, planetary gearboxes, encoders and brakes, or built to mate with the customer’s own gearbox or motor. Click a configuration to see what it includes. Need something different? New designs are added often.
FGD3B-62M-12S-R-3A33(1m)24 V DC electric gear motor
| Electric motor | 24 V DC gear motor, 3 rpm, 33 N·m rated output torque |
|---|---|
| Motor cable | 1 m |
| Output speed | < 2.5 rpm |
| Input | 12 mm keyed bore |
| Worm far end | Standard end cap |
| Worm hand | Right hand |
| Ratio | 62:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
