30E.0424.22.000 Slewing Ring Bearing

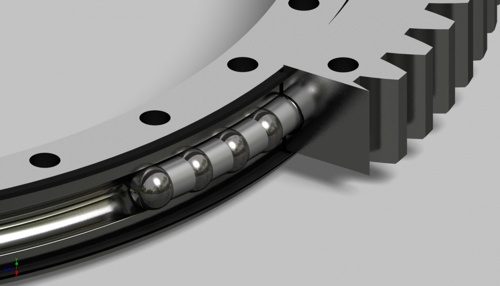

30 Series slewing ring bearing, external gear, 520 mm OD × 324 mm ID. Interchangeable with Galperti Tech V41 0520 009 21 22 0424.
Specifications
| SlewPro part number | 30E.0424.22.000 |
|---|---|
| Series | 30 Series |
| Bearing design | Four-point contact, single-row ball |
| Gear | External gear |
| Raceway diameter | 424 mm (16.69 in) |
| Outside diameter | 520.4 mm (20.49 in) |
| Inside diameter | 323.8 mm (12.75 in) |
| Overall height | 61.2 mm (2.41 in) |
| Outer ring height | 59.7 mm (2.35 in) |
| Inner ring height | 52.3 mm (2.06 in) |
| Outer ring bore | 421.9 mm (16.61 in) |
| Inner ring outside diameter | 430 mm (16.93 in) |
| All diameters on drawing | 20.49 in (520.4 mm), 16.93 in (430.0 mm), 16.77 in (426.0 mm), 16.61 in (421.9 mm), 16.45 in (417.8 mm), 12.75 in (323.8 mm) |
| All heights on drawing | 2.41 in (61.2 mm), 2.35 in (59.7 mm), 2.06 in (52.3 mm) |
| Diametral pitch | 5 |
| Number of teeth | 101 |
| Pitch diameter | 20.2 in |
| Pressure angle | 20° |
| Material | Steel, 50Mn |
| Approx. weight | 112 lb (51 kg) |
Dimensions from our 3D model; confirm against the certified drawing. Load ratings and life calculations available from our engineers.
Crosses to
| Galperti | Tech V41 0520 009 21 22 0424 |
|---|
Interchange based on published dimensions; our engineers confirm fit before quoting.
