21 SeriesPlain (no gear)Rothe Erde 230.20.0500.013
21P.0544.20.002 Slewing Ring Bearing

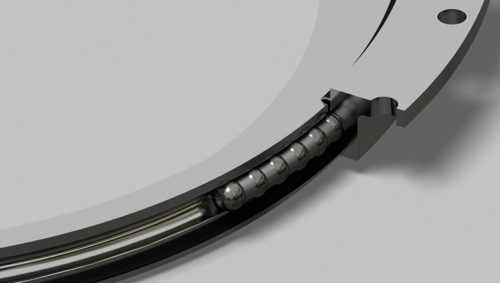

21 Series slewing ring bearing, plain (no gear), 648 mm OD × 434 mm ID. Interchangeable with Rothe Erde 230.20.0500.013.
Specifications
| SlewPro part number | 21P.0544.20.002 |
|---|---|
| Series | 21 Series |
| Bearing design | Four-point contact, single-row ball |
| Gear | Plain (no gear) |
| Raceway diameter | 544 mm (21.42 in) |
| Outside diameter | 648 mm (25.51 in) |
| Inside diameter | 434.1 mm (17.09 in) |
| Overall height | 55.9 mm (2.20 in) |
| Outer ring height | 45.5 mm (1.79 in) |
| Inner ring height | 45.5 mm (1.79 in) |
| Outer ring bore | 545.6 mm (21.48 in) |
| Inner ring outside diameter | 542.5 mm (21.36 in) |
| All diameters on drawing | 25.51 in (648.0 mm), 22.95 in (582.9 mm), 21.48 in (545.6 mm), 21.36 in (542.5 mm), 19.88 in (505.0 mm), 17.09 in (434.1 mm) |
| All heights on drawing | 2.20 in (55.9 mm), 1.79 in (45.5 mm), 0.47 in (11.9 mm), 0.41 in (10.4 mm) |
| Material | Steel, 50Mn |
| Approx. weight | 71.0 lb (32 kg) |
Dimensions from our 3D model; confirm against the certified drawing. Load ratings and life calculations available from our engineers.
Crosses to
| Rothe Erde | 230.20.0500.013 |
|---|
Interchange based on published dimensions; our engineers confirm fit before quoting.
CAD & documents
Get this bearing
Standard lead time 14–16 weeks; expediting available for an additional charge. Pricing quoted within 1–2 business days. Matching pinions available.
Request a QuoteTalk to an engineer
Need help selecting the right part? Our engineers will size it, cross it, and quote it — usually within 1–2 business days.
Not in the catalog? We design to your application, with no engineering charge.
