100 SeriesExternal gear
100E.1600.16.000 Slewing Ring Bearing

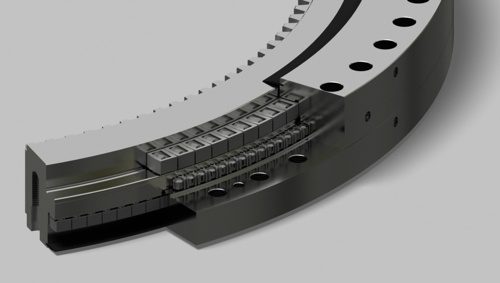

100 Series slewing ring bearing, external gear, 1,812 mm OD × 1,469 mm ID.
Specifications
| SlewPro part number | 100E.1600.16.000 |
|---|---|
| Series | 100 Series |
| Bearing design | Three-row roller |
| Gear | External gear |
| Raceway diameter | 1,600 mm (62.99 in) |
| Outside diameter | 1,812 mm (71.34 in) |
| Inside diameter | 1,468.6 mm (57.82 in) |
| Overall height | 93.5 mm (3.68 in) |
| Outer ring height | 74.7 mm (2.94 in) |
| Inner ring height | 86.9 mm (3.42 in) |
| Outer ring bore | 1,623.1 mm (63.90 in) |
| Inner ring outside diameter | 1,620.3 mm (63.79 in) |
| All diameters on drawing | 71.34 in (1812.0 mm), 63.90 in (1623.1 mm), 63.79 in (1620.3 mm), 57.82 in (1468.6 mm) |
| All heights on drawing | 3.68 in (93.5 mm), 3.42 in (86.9 mm), 2.94 in (74.7 mm), 0.74 in (18.8 mm), 0.26 in (6.6 mm) |
| Gear module | 12 |
| Number of teeth | 149 |
| Pitch diameter | 70.394 mm |
| Pressure angle | 20° |
| Approx. weight | 1,004 lb (455 kg) |
Dimensions from our 3D model; confirm against the certified drawing. Load ratings and life calculations available from our engineers.
CAD & documents
Get this bearing
Standard lead time 14–16 weeks; expediting available for an additional charge. Pricing quoted within 1–2 business days. Matching pinions available.
