FGE SeriesRatio 61:1
FGE9 Slewing Drive
Enclosed hourglass-worm slewing drives with lip seal. An hourglass worm in an enclosed housing that protects the drive from wind, rain and harsh environments, for indoor and outdoor use. The face is sealed with a lip seal; for a better sealing arrangement, see the FGA Series with a cup seal.
Performance
| Model | FGE9 |
|---|---|
| Series | FGE Series |
| Type | Enclosed hourglass-worm slewing drives with lip seal |
| Max. output torque | 6,500 N·m (4,794 lbf-ft) |
| Max. tilting moment | 33,900 N·m (25,005 lbf-ft) |
| Holding torque | 40,000 N·m (29,504 lbf-ft) |
| Max. axial load | 340 kN (76,432 lbf) |
| Max. radial load | 138 kN (31,022 lbf) |
| Gear ratio | 61:1 |
| Tracking precision | ≤ 0.17° |
| Backlash | 0.17° |
| Unit weight | 108 lb (49 kg) |
Maximum ratings. Our engineers will confirm the drive for your duty cycle.

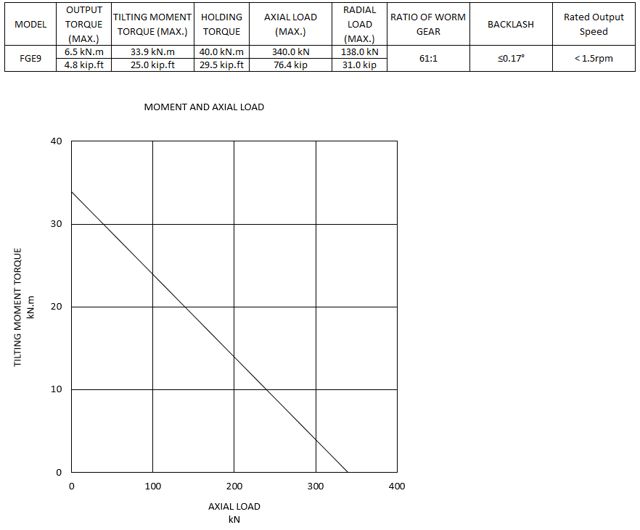

Load chart
Tilting moment vs. axial load. Click to enlarge.
Get this drive
Standard lead time 14–16 weeks; expediting available for an additional charge. Pricing quoted within 1–2 business days. 3D models available on request.
Request a Quote16 FGE9 configurations on file
Drives we have already engineered: with hydraulic motors, DC gear motors, SEW-EURODRIVE or NORD AC gear motors integrated in-house, planetary gearboxes, encoders and brakes, or built to mate with the customer’s own gearbox or motor. Click a configuration to see what it includes. Need something different? New designs are added often.
FGE9-61M-19S-R-3AH100(1m)24 V DC electric gear motor
| Electric motor | 24 V DC gear motor, 3 rpm, 100 N·m rated output torque |
|---|---|
| Motor cable | 1 m |
| Feedback | Hall-effect sensors (A/B quadrature) |
| Output speed | 0.05 rpm |
| Input | 19 mm keyed bore |
| Worm far end | Standard end cap |
| Worm hand | Right hand |
| Ratio | 61:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FGE9-61BT-BH-R-DB-D40-675E-48V48 V DC electric motor
| Output speed | < 2.5 rpm |
|---|---|
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 61:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Inner ring through holes, outer ring blind threaded holes |
| Top plate | Top plate with through holes; slewing ring with threaded holes (DB). Interchangeable with LB. |
| 3D model | Available on request |
FGE9-61B-25H-L-LBCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 2.5 rpm |
| Input | 25 mm keyed bore |
| Worm far end | Hex head (manual drive) |
| Worm hand | Left hand |
| Ratio | 61:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Top plate | No top plate; slewing ring with counterbored and threaded holes (LB, recommended). Interchangeable with DB. |
| 3D model | Available on request |
FGE9-61B-25H-R-DBCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 2.5 rpm |
| Input | 25 mm keyed bore |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 61:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Top plate | Top plate with through holes; slewing ring with threaded holes (DB). Interchangeable with LB. |
| 3D model | Available on request |
FGE9-61BT-25H-L-LBCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 2.5 rpm |
| Input | 25 mm keyed bore |
| Worm far end | Hex head (manual drive) |
| Worm hand | Left hand |
| Ratio | 61:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Inner ring through holes, outer ring blind threaded holes |
| Top plate | No top plate; slewing ring with counterbored and threaded holes (LB, recommended). Interchangeable with DB. |
| 3D model | Available on request |
FGE9-61BT-BH-R-DBCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 2.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 61:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Inner ring through holes, outer ring blind threaded holes |
| Top plate | Top plate with through holes; slewing ring with threaded holes (DB). Interchangeable with LB. |
| 3D model | Available on request |
FGE9-61BT-BH-R-DB-1G4XS.080115Customer-supplied gearbox or motor
| Designed to mate with | Customer unit 1G4XS.080115 |
|---|---|
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
| Output speed | < 2.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 61:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Inner ring through holes, outer ring blind threaded holes |
| Top plate | Top plate with through holes; slewing ring with threaded holes (DB). Interchangeable with LB. |
| 3D model | Available on request |
FGE9-61BT-HR-LB-C005(R160)Customer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 2.5 rpm |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 61:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Inner ring through holes, outer ring blind threaded holes |
| Version | Customer-specific variant |
| Top plate | No top plate; slewing ring with counterbored and threaded holes (LB, recommended). Interchangeable with DB. |
| 3D model | Available on request |
FGE9-61M-25H-RCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 2.5 rpm |
| Input | 25 mm keyed bore |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 61:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FGE9-61M-S-R-DB-C005(R120)Customer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 2.5 rpm |
| Worm far end | Standard end cap |
| Worm hand | Right hand |
| Ratio | 61:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Version | Customer-specific variant |
| Top plate | Top plate with through holes; slewing ring with threaded holes (DB). Interchangeable with LB. |
| 3D model | Available on request |
FGE9-61MT-HR-LB-C005(R160)Customer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 2.5 rpm |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 61:1 |
| Mounting threads | Metric |
| Mounting holes | Inner ring through holes, outer ring blind threaded holes |
| Version | Customer-specific variant |
| Top plate | No top plate; slewing ring with counterbored and threaded holes (LB, recommended). Interchangeable with DB. |
| 3D model | Available on request |
FGE9-61B-BH-R-160-A-DBHydraulic motor
| Hydraulic motor | 160 cc/rev displacement |
|---|---|
| Motor ports | away from worm housing |
| Hydraulic pressure | 9 MPa (1,305 psi) |
| Hydraulic flow | 10 L/min (2.6 gpm) |
| Output speed | 0.95 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 61:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Top plate | Top plate with through holes; slewing ring with threaded holes (DB). Interchangeable with LB. |
| 3D model | Available on request |
FGE9-61BT-BH-R-160-A-DBHydraulic motor
| Hydraulic motor | 160 cc/rev displacement |
|---|---|
| Motor ports | away from worm housing |
| Hydraulic pressure | 10.4 MPa (1,508 psi) |
| Hydraulic flow | 15 L/min (4.0 gpm) |
| Output speed | 1.26 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 61:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Inner ring through holes, outer ring blind threaded holes |
| Top plate | Top plate with through holes; slewing ring with threaded holes (DB). Interchangeable with LB. |
| 3D model | Available on request |
FGE9-61BT-BH-R-WR160-A-DBHydraulic motor
| Hydraulic motor | 160 cc/rev displacement |
|---|---|
| Motor ports | away from worm housing |
| Hydraulic pressure | 10.4 MPa (1,508 psi) |
| Hydraulic flow | 15 L/min (4.0 gpm) |
| Output speed | 1.26 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 61:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Inner ring through holes, outer ring blind threaded holes |
| Top plate | Top plate with through holes; slewing ring with threaded holes (DB). Interchangeable with LB. |
| 3D model | Available on request |
FGE9-61BT-BH-R-DB-SK172.1Z-56CNORD electric gear motor
| Motor / gearbox make | NORD |
|---|---|
| Output speed | < 2.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 61:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Inner ring through holes, outer ring blind threaded holes |
| Top plate | Top plate with through holes; slewing ring with threaded holes (DB). Interchangeable with LB. |
| 3D model | Available on request |
FGE9-61BT-BH-R-DB-SK172.1Z-63LPNORD electric gear motor
| Motor / gearbox make | NORD |
|---|---|
| Output speed | < 2.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 61:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Inner ring through holes, outer ring blind threaded holes |
| Top plate | Top plate with through holes; slewing ring with threaded holes (DB). Interchangeable with LB. |
| 3D model | Available on request |
