FGE7 Slewing Drive
Enclosed hourglass-worm slewing drives with lip seal. An hourglass worm in an enclosed housing that protects the drive from wind, rain and harsh environments, for indoor and outdoor use. The face is sealed with a lip seal; for a better sealing arrangement, see the FGA Series with a cup seal.
Performance
| Model | FGE7 |
|---|---|
| Series | FGE Series |
| Type | Enclosed hourglass-worm slewing drives with lip seal |
| Max. output torque | 1,500 N·m (1,106 lbf-ft) |
| Max. tilting moment | 13,500 N·m (9,958 lbf-ft) |
| Holding torque | 10,600 N·m (7,819 lbf-ft) |
| Max. axial load | 135 kN (30,348 lbf) |
| Max. radial load | 53 kN (11,914 lbf) |
| Gear ratio | 73:1 |
| Tracking precision | ≤ 0.2° |
| Backlash | 0.2° |
| Unit weight | 52.9 lb (24 kg) |
Maximum ratings. Our engineers will confirm the drive for your duty cycle.

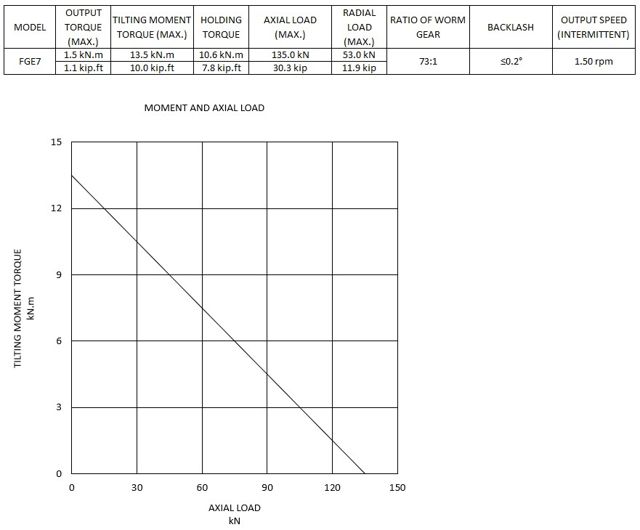

Load chart
Tilting moment vs. axial load. Click to enlarge.
Get this drive
Standard lead time 14–16 weeks; expediting available for an additional charge. Pricing quoted within 1–2 business days. 3D models available on request.
Request a Quote8 FGE7 configurations on file
Drives we have already engineered: with hydraulic motors, DC gear motors, SEW-EURODRIVE or NORD AC gear motors integrated in-house, planetary gearboxes, encoders and brakes, or built to mate with the customer’s own gearbox or motor. Click a configuration to see what it includes. Need something different? New designs are added often.
FGE7-73M-12S-R-3A60(1M)24 V DC electric gear motor
| Electric motor | 24 V DC gear motor, 3 rpm, 60 N·m rated output torque |
|---|---|
| Motor cable | 1 m |
| Output speed | 0.041 rpm |
| Input | 12 mm keyed bore |
| Worm far end | Standard end cap |
| Worm hand | Right hand |
| Ratio | 73:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FGE7-73M-12S-R-86A25(1M)-DB24 V DC electric gear motor
| Electric motor | 24 V DC gear motor, 86 rpm, 25 N·m rated output torque |
|---|---|
| Motor cable | 1 m |
| Output speed | 1.18 rpm |
| Input | 12 mm keyed bore |
| Worm far end | Standard end cap |
| Worm hand | Right hand |
| Ratio | 73:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Top plate | Top plate with through holes; slewing ring with threaded holes (DB). Interchangeable with LB. |
| 3D model | Available on request |
FGE7-73B-16H-RCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | 1.5 rpm |
| Input | 16 mm keyed bore |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 73:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FGE7-73B-HL-C005Customer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | 1.5 rpm |
| Worm far end | Hex head (manual drive) |
| Worm hand | Left hand |
| Ratio | 73:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Version | Customer-specific variant |
| 3D model | Available on request |
FGE7-73M-16H-RCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | 1.5 rpm |
| Input | 16 mm keyed bore |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 73:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FGE7-73M-HR-C005(R80)Customer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 2.5 rpm |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 73:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Version | Customer-specific variant |
| 3D model | Available on request |
FGE7-73M-16H-L-M32-UHydraulic motor
| Hydraulic motor displacement | 32 cc/rev |
|---|---|
| Hydraulic pressure | 5 MPa (725 psi) |
| Hydraulic flow | 4 L/min (1.1 gpm) |
| Output speed | 1.5 rpm |
| Input | 16 mm keyed bore |
| Worm far end | Hex head (manual drive) |
| Worm hand | Left hand |
| Ratio | 73:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FGE7-73M-16H-R-M32-UHydraulic motor
| Hydraulic motor displacement | 32 cc/rev |
|---|---|
| Hydraulic pressure | 5 MPa (725 psi) |
| Hydraulic flow | 4 L/min (1.1 gpm) |
| Output speed | 1.5 rpm |
| Input | 16 mm keyed bore |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 73:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
Talk to an engineer
Need help selecting the right part? Our engineers will size it, cross it, and quote it — usually within 1–2 business days.
Not in the catalog? We design to your application, with no engineering charge.
