FGE3C Slewing Drive
Enclosed hourglass-worm slewing drives with lip seal. An hourglass worm in an enclosed housing that protects the drive from wind, rain and harsh environments, for indoor and outdoor use. The face is sealed with a lip seal; for a better sealing arrangement, see the FGA Series with a cup seal.
Performance
| Model | FGE3C |
|---|---|
| Series | FGE Series |
| Type | Enclosed hourglass-worm slewing drives with lip seal |
| Max. output torque | 400 N·m (295 lbf-ft) |
| Max. tilting moment | 1,100 N·m (811 lbf-ft) |
| Holding torque | 2,000 N·m (1,475 lbf-ft) |
| Max. axial load | 30 kN (6,744 lbf) |
| Max. radial load | 16.6 kN (3,732 lbf) |
| Gear ratio | 62:1 |
| Tracking precision | ≤ 0.2° |
| Backlash | 0.2° |
| Unit weight | 26.5 lb (12 kg) |
Maximum ratings. Our engineers will confirm the drive for your duty cycle.

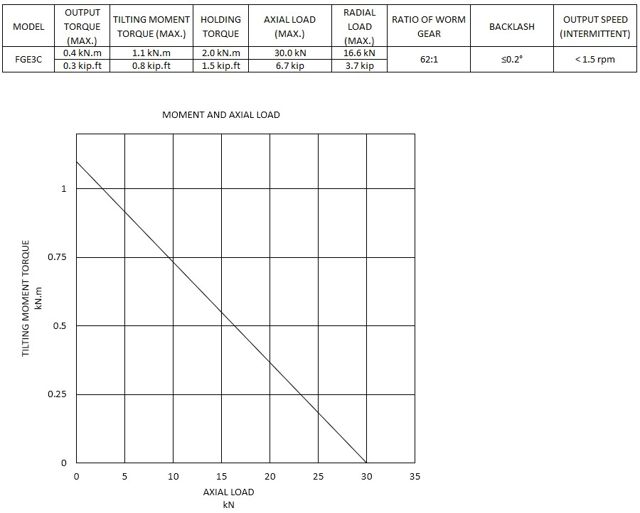

Load chart
Tilting moment vs. axial load. Click to enlarge.
Get this drive
Standard lead time 14–16 weeks; expediting available for an additional charge. Pricing quoted within 1–2 business days. 3D models available on request.
Request a Quote7 FGE3C configurations on file
Drives we have already engineered: with hydraulic motors, DC gear motors, SEW-EURODRIVE or NORD AC gear motors integrated in-house, planetary gearboxes, encoders and brakes, or built to mate with the customer’s own gearbox or motor. Click a configuration to see what it includes. Need something different? New designs are added often.
FGE3C-31M-12S-R-C005Customer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 1.5 rpm |
| Input | 12 mm keyed bore |
| Worm far end | Standard end cap |
| Worm hand | Right hand |
| Ratio | 31:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Version | Customer-specific variant |
| 3D model | On request |
FGE3C-62M-12E2-RCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Encoder | Absolute encoder |
| Output speed | < 1.5 rpm |
| Input | 12 mm keyed bore |
| Worm far end | Encoder interface |
| Worm shafts | 2 (double torque) |
| Worm hand | Right hand |
| Ratio | 62:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FGE3C-62M-12S-RCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 1.5 rpm |
| Input | 12 mm keyed bore |
| Worm far end | Standard end cap |
| Worm hand | Right hand |
| Ratio | 62:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FGE3C-62M-16S-RCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | <1.5 rpm |
| Input | 16 mm keyed bore |
| Worm far end | Standard end cap |
| Worm hand | Right hand |
| Ratio | 62:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FGE3C-62M-12S-R-CPM-231X-LSElectric servo gear motor
| Input | 12 mm keyed bore |
|---|---|
| Worm far end | Standard end cap |
| Worm hand | Right hand |
| Ratio | 62:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FGE3C-62M-12S-R-EHS-101-1700Hydraulic motor
| Hydraulic motor | 101 cc/rev displacement |
|---|---|
| Designed to mate with | Customer unit EHS-101-1700 |
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
| Output speed | 16.5 rpm |
| Input | 12 mm keyed bore |
| Worm far end | Standard end cap |
| Worm hand | Right hand |
| Ratio | 62:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FGE3C-62M-16S-R-M40-AHydraulic motor
| Hydraulic motor displacement | 40 cc/rev |
|---|---|
| Hydraulic pressure | 5 MPa (725 psi) |
| Hydraulic flow | 4 L/min (1.1 gpm) |
| Output speed | 0.65 rpm |
| Input | 16 mm keyed bore |
| Worm far end | Standard end cap |
| Worm hand | Right hand |
| Ratio | 62:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
