FGE17 Slewing Drive
Enclosed hourglass-worm slewing drives with lip seal. An hourglass worm in an enclosed housing that protects the drive from wind, rain and harsh environments, for indoor and outdoor use. The face is sealed with a lip seal; for a better sealing arrangement, see the FGA Series with a cup seal.
Performance
| Model | FGE17 |
|---|---|
| Series | FGE Series |
| Type | Enclosed hourglass-worm slewing drives with lip seal |
| Max. output torque | 10,000 N·m (7,376 lbf-ft) |
| Max. tilting moment | 135,600 N·m (100,019 lbf-ft) |
| Holding torque | 73,000 N·m (53,845 lbf-ft) |
| Max. axial load | 980 kN (220,304 lbf) |
| Max. radial load | 400 kN (89,920 lbf) |
| Gear ratio | 102:1 |
| Tracking precision | ≤ 0.15° |
| Backlash | 0.15° |
| Unit weight | 233.7 lb (106 kg) |
Maximum ratings. Our engineers will confirm the drive for your duty cycle.

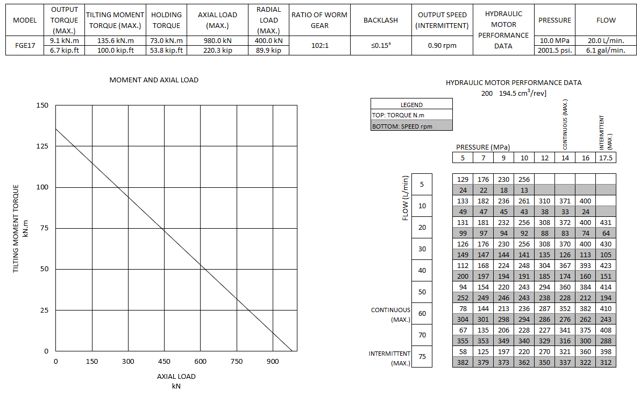

Load chart
Tilting moment vs. axial load. Click to enlarge.
Get this drive
Standard lead time 14–16 weeks; expediting available for an additional charge. Pricing quoted within 1–2 business days. 3D models available on request.
Request a Quote5 FGE17 configurations on file
Drives we have already engineered: with hydraulic motors, DC gear motors, SEW-EURODRIVE or NORD AC gear motors integrated in-house, planetary gearboxes, encoders and brakes, or built to mate with the customer’s own gearbox or motor. Click a configuration to see what it includes. Need something different? New designs are added often.
FGE17-102B-BH-R-DB-C005Customer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | 1.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 102:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Version | Customer-specific variant |
| Top plate | Top plate with through holes; slewing ring with threaded holes (DB). Interchangeable with LB. |
| 3D model | Available on request |
FGE17-102M-BH-RCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 1.5 RPM |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 102:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FGE17-102B-BH-L-200-A-DBHydraulic motor
| Hydraulic motor | 200 cc/rev displacement |
|---|---|
| Motor ports | away from worm housing |
| Hydraulic pressure | 10 MPa (1,450 psi) |
| Hydraulic flow | 20 L/min (5.3 gpm) |
| Output speed | 0.9 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Left hand |
| Ratio | 102:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Top plate | Top plate with through holes; slewing ring with threaded holes (DB). Interchangeable with LB. |
| 3D model | Available on request |
FGE17-102B-BH-R-200-A-DBHydraulic motor
| Hydraulic motor | 200 cc/rev displacement |
|---|---|
| Motor ports | away from worm housing |
| Hydraulic pressure | 10 MPa (1,450 psi) |
| Hydraulic flow | 20 L/min (5.3 gpm) |
| Output speed | 0.9 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 102:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Top plate | Top plate with through holes; slewing ring with threaded holes (DB). Interchangeable with LB. |
| 3D model | Available on request |
FGE17-102M-BH-R-160-AHydraulic motor
| Hydraulic motor | 160 cc/rev displacement |
|---|---|
| Motor ports | away from worm housing |
| Hydraulic pressure | 10 MPa (1,450 psi) |
| Hydraulic flow | 20 L/min (5.3 gpm) |
| Output speed | 1.12 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 102:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
