FGE SeriesRatio 85:1
FGE14 Slewing Drive
Enclosed hourglass-worm slewing drives with lip seal. An hourglass worm in an enclosed housing that protects the drive from wind, rain and harsh environments, for indoor and outdoor use. The face is sealed with a lip seal; for a better sealing arrangement, see the FGA Series with a cup seal.
Performance
| Model | FGE14 |
|---|---|
| Series | FGE Series |
| Type | Enclosed hourglass-worm slewing drives with lip seal |
| Max. output torque | 8,000 N·m (5,901 lbf-ft) |
| Max. tilting moment | 67,800 N·m (50,009 lbf-ft) |
| Holding torque | 49,000 N·m (36,142 lbf-ft) |
| Max. axial load | 555 kN (124,764 lbf) |
| Max. radial load | 222 kN (49,906 lbf) |
| Gear ratio | 85:1 |
| Tracking precision | ≤ 0.17° |
| Backlash | 0.17° |
| Unit weight | 143.3 lb (65 kg) |
Maximum ratings. Our engineers will confirm the drive for your duty cycle.
Load chart

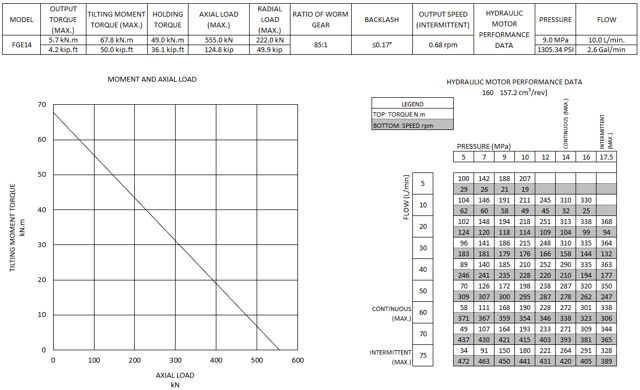

Tilting moment vs. axial load. Click to enlarge.
Get this drive
Standard lead time 14–16 weeks; expediting available for an additional charge. Pricing quoted within 1–2 business days. 3D models available on request.
Request a Quote9 FGE14 configurations on file
Drives we have already engineered: with hydraulic motors, DC gear motors, SEW-EURODRIVE or NORD AC gear motors integrated in-house, planetary gearboxes, encoders and brakes, or built to mate with the customer’s own gearbox or motor. Click a configuration to see what it includes. Need something different? New designs are added often.
FGE14-85B-BH-R-LBCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 1.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 85:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Top plate | No top plate; slewing ring with counterbored and threaded holes (LB, recommended). Interchangeable with DB. |
| 3D model | Available on request |
FGE14-85BD-20H-L-LBCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | <1.5 |
| Input | 20 mm keyed bore |
| Worm far end | Hex head (manual drive) |
| Worm hand | Left hand |
| Ratio | 85:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Inner ring through threaded holes, outer ring blind threaded holes |
| Top plate | No top plate; slewing ring with counterbored and threaded holes (LB, recommended). Interchangeable with DB. |
| 3D model | Available on request |
FGE14-85M-25H-R-DBCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | 1.5 rpm |
| Input | 25 mm keyed bore |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 85:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Top plate | Top plate with through holes; slewing ring with threaded holes (DB). Interchangeable with LB. |
| 3D model | Available on request |
FGE14-85MD-20H-L-LBCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | <1.5 |
| Input | 20 mm keyed bore |
| Worm far end | Hex head (manual drive) |
| Worm hand | Left hand |
| Ratio | 85:1 |
| Mounting threads | Metric |
| Mounting holes | Inner ring through threaded holes, outer ring blind threaded holes |
| Top plate | No top plate; slewing ring with counterbored and threaded holes (LB, recommended). Interchangeable with DB. |
| 3D model | Available on request |
FGE14-85MD-20H-R-DBCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | 1.5 rpm |
| Input | 20 mm keyed bore |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 85:1 |
| Mounting threads | Metric |
| Mounting holes | Inner ring through threaded holes, outer ring blind threaded holes |
| Top plate | Top plate with through holes; slewing ring with threaded holes (DB). Interchangeable with LB. |
| 3D model | Available on request |
FGE14-85B-BH-R-160-A-LBHydraulic motor
| Hydraulic motor | 160 cc/rev displacement |
|---|---|
| Motor ports | away from worm housing |
| Hydraulic pressure | 9 MPa (1,305 psi) |
| Hydraulic flow | 10 L/min (2.6 gpm) |
| Output speed | 0.68 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 85:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Top plate | No top plate; slewing ring with counterbored and threaded holes (LB, recommended). Interchangeable with DB. |
| 3D model | Available on request |
FGE14-85B-BH-R-160-A-SPHydraulic motor
| Hydraulic motor | 160 cc/rev displacement |
|---|---|
| Motor ports | away from worm housing |
| Hydraulic pressure | 9 MPa (1,305 psi) |
| Hydraulic flow | 10 L/min (2.6 gpm) |
| Output speed | 0.68 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 85:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FGE14-85B-BH-R-160-U-LBHydraulic motor
| Hydraulic motor | 160 cc/rev displacement |
|---|---|
| Motor ports | toward slewing ring mounting face |
| Hydraulic pressure | 9 MPa (1,305 psi) |
| Hydraulic flow | 10 L/min (2.6 gpm) |
| Output speed | 0.68 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 85:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Top plate | No top plate; slewing ring with counterbored and threaded holes (LB, recommended). Interchangeable with DB. |
| 3D model | Available on request |
FGE14-85M-BH-R-125-AHydraulic motor
| Hydraulic motor | 125 cc/rev displacement |
|---|---|
| Motor ports | away from worm housing |
| Hydraulic pressure | 9 MPa (1,305 psi) |
| Hydraulic flow | 10 L/min (2.6 gpm) |
| Output speed | 0.87 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 85:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
