FGE12 Slewing Drive
Enclosed hourglass-worm slewing drives with lip seal. An hourglass worm in an enclosed housing that protects the drive from wind, rain and harsh environments, for indoor and outdoor use. The face is sealed with a lip seal; for a better sealing arrangement, see the FGA Series with a cup seal.
Performance
| Model | FGE12 |
|---|---|
| Series | FGE Series |
| Type | Enclosed hourglass-worm slewing drives with lip seal |
| Max. output torque | 7,500 N·m (5,532 lbf-ft) |
| Max. tilting moment | 54,300 N·m (40,052 lbf-ft) |
| Holding torque | 45,000 N·m (33,192 lbf-ft) |
| Max. axial load | 475 kN (106,780 lbf) |
| Max. radial load | 190 kN (42,712 lbf) |
| Gear ratio | 78:1 |
| Tracking precision | ≤ 0.17° |
| Backlash | 0.17° |
| Unit weight | 132.3 lb (60 kg) |
Maximum ratings. Our engineers will confirm the drive for your duty cycle.

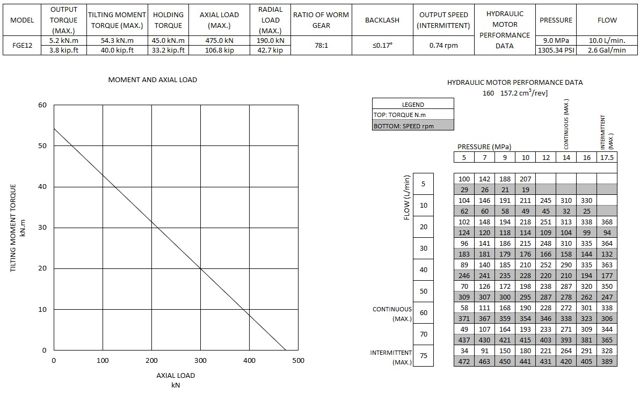

Load chart
Tilting moment vs. axial load. Click to enlarge.
Get this drive
Standard lead time 14–16 weeks; expediting available for an additional charge. Pricing quoted within 1–2 business days. 3D models available on request.
Request a Quote4 FGE12 configurations on file
Drives we have already engineered: with hydraulic motors, DC gear motors, SEW-EURODRIVE or NORD AC gear motors integrated in-house, planetary gearboxes, encoders and brakes, or built to mate with the customer’s own gearbox or motor. Click a configuration to see what it includes. Need something different? New designs are added often.
FGE12-78B-BH-R-DBCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | < 1.5 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 78:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Top plate | Top plate with through holes; slewing ring with threaded holes (DB). Interchangeable with LB. |
| 3D model | Available on request |
FGE12-78B-BH-R-160-A-LBHydraulic motor
| Hydraulic motor | 160 cc/rev displacement |
|---|---|
| Motor ports | away from worm housing |
| Hydraulic pressure | 9 MPa (1,305 psi) |
| Hydraulic flow | 10 L/min (2.6 gpm) |
| Output speed | 0.74 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 78:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Top plate | No top plate; slewing ring with counterbored and threaded holes (LB, recommended). Interchangeable with DB. |
| 3D model | Available on request |
FGE12-78B-BH-R-160-A-LB-SK1S175Hydraulic motor
| Hydraulic motor | 160 cc/rev displacement |
|---|---|
| Motor ports | away from worm housing |
| Output speed | 0.46 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 78:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Top plate | No top plate; slewing ring with counterbored and threaded holes (LB, recommended). Interchangeable with DB. |
| 3D model | Available on request |
FGE12-78M-BH-R-LB-C005(R164)Hydraulic motor
| Hydraulic pressure | 9 MPa (1,305 psi) |
|---|---|
| Hydraulic flow | 10 L/min (2.6 gpm) |
| Output speed | 0.74 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 78:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Version | Customer-specific variant |
| Top plate | No top plate; slewing ring with counterbored and threaded holes (LB, recommended). Interchangeable with DB. |
| 3D model | Available on request |
