FGA5 Slewing Drive
Enclosed hourglass-worm slewing drives with cup seal. The same helical gear and hourglass-worm design as the FGE Series, but the face is sealed with a cup seal instead of a lip seal for a better sealing arrangement, up to IP65. Self-locking gearset, multiple accuracy levels, metric or inch mounting.
Performance
| Model | FGA5 |
|---|---|
| Series | FGA Series |
| Type | Enclosed hourglass-worm slewing drives with cup seal |
| Max. output torque | 600 N·m (443 lbf-ft) |
| Max. tilting moment | 3,000 N·m (2,213 lbf-ft) |
| Holding torque | 5,500 N·m (4,057 lbf-ft) |
| Max. axial load | 45 kN (10,116 lbf) |
| Max. radial load | 22 kN (4,946 lbf) |
| Gear ratio | 62:1 |
| Backlash | 0.2° |
| Unit weight | 35.3 lb (16 kg) |
Maximum ratings. Our engineers will confirm the drive for your duty cycle.
Load chart

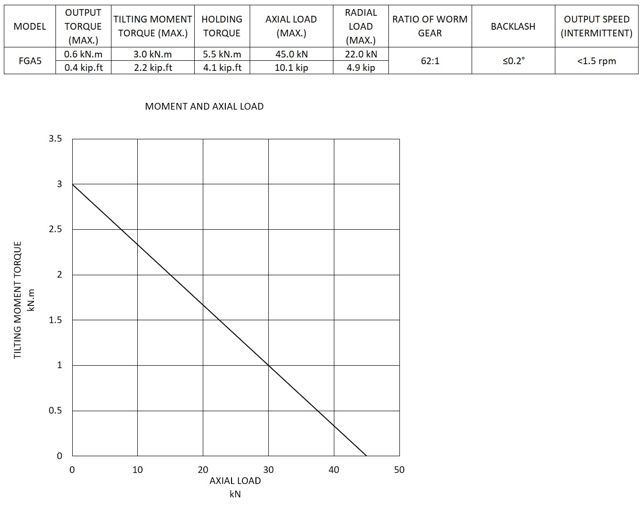

Tilting moment vs. axial load. Click to enlarge.
Get this drive
Standard lead time 14–16 weeks; expediting available for an additional charge. Pricing quoted within 1–2 business days. 3D models available on request.
Request a Quote7 FGA5 configurations on file
Drives we have already engineered: with hydraulic motors, DC gear motors, SEW-EURODRIVE or NORD AC gear motors integrated in-house, planetary gearboxes, encoders and brakes, or built to mate with the customer’s own gearbox or motor. Click a configuration to see what it includes. Need something different? New designs are added often.
FGA5-62M-12H-R-3A33(1m)24 V DC electric gear motor
| Electric motor | 24 V DC gear motor, 3 rpm, 33 N·m rated output torque |
|---|---|
| Motor cable | 1 m |
| Output speed | 0.048 rpm |
| Input | 12 mm keyed bore |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 62:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FGA5-62M-12S-RCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | <1.5 rpm |
| Input | 12 mm keyed bore |
| Worm far end | Standard end cap |
| Worm hand | Right hand |
| Ratio | 62:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FGA5-62M-16H-RCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | 1.5 rpm |
| Input | 16 mm keyed bore |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 62:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FGA5-62M-D-R-C005(120)Customer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | 2.5 rpm |
| Worm hand | Right hand |
| Ratio | 62:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Version | Customer-specific variant |
| 3D model | Available on request |
FGA5-62M-E-R-C005(R120)Customer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | 2.5 rpm |
| Worm far end | Encoder interface |
| Worm hand | Right hand |
| Ratio | 62:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Version | Customer-specific variant |
| 3D model | Available on request |
FGA5-62M-H-RLCustomer-supplied gearbox or motor
| Motor / gearbox | Supplied by customer; drive is built with the matching input interface |
|---|---|
| Output speed | 1.5 rpm |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right and left |
| Ratio | 62:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
FGA5-62M-16H-R-M50-AHydraulic motor
| Hydraulic motor displacement | 50 cc/rev |
|---|---|
| Hydraulic pressure | 7 MPa (1,015 psi) |
| Hydraulic flow | 4 L/min (1.1 gpm) |
| Output speed | 1 rpm |
| Input | 16 mm keyed bore |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 62:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
