FGA14 Slewing Drive
Enclosed hourglass-worm slewing drives with cup seal. The same helical gear and hourglass-worm design as the FGE Series, but the face is sealed with a cup seal instead of a lip seal for a better sealing arrangement, up to IP65. Self-locking gearset, multiple accuracy levels, metric or inch mounting.
Performance
| Model | FGA14 |
|---|---|
| Series | FGA Series |
| Type | Enclosed hourglass-worm slewing drives with cup seal |
| Max. output torque | 5,950 N·m (4,389 lbf-ft) |
| Max. tilting moment | 67,800 N·m (50,009 lbf-ft) |
| Holding torque | 48,000 N·m (35,405 lbf-ft) |
| Max. axial load | 555 kN (124,764 lbf) |
| Max. radial load | 222 kN (49,906 lbf) |
| Gear ratio | 85:1 |
| Backlash | 0.17° |
Maximum ratings. Our engineers will confirm the drive for your duty cycle.

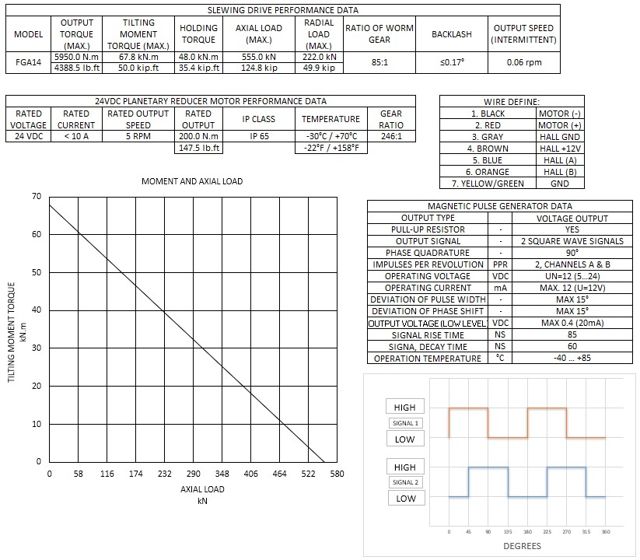

Load chart
Tilting moment vs. axial load. Click to enlarge.
Get this drive
Standard lead time 14–16 weeks; expediting available for an additional charge. Pricing quoted within 1–2 business days. 3D models available on request.
Request a Quote1 FGA14 configuration on file
Drives we have already engineered: with hydraulic motors, DC gear motors, SEW-EURODRIVE or NORD AC gear motors integrated in-house, planetary gearboxes, encoders and brakes, or built to mate with the customer’s own gearbox or motor. Click a configuration to see what it includes. Need something different? New designs are added often.
FGA14-85B-HR-5AH200(1.5m)24 V DC electric gear motor
| Electric motor | 24 V DC gear motor, 5 rpm, 200 N·m rated output torque |
|---|---|
| Motor cable | 1.5 m |
| Feedback | Hall-effect sensors (A/B quadrature) |
| Output speed | 0.059 rpm |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 85:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
