FGA12 Slewing Drive
Enclosed hourglass-worm slewing drives with cup seal. The same helical gear and hourglass-worm design as the FGE Series, but the face is sealed with a cup seal instead of a lip seal for a better sealing arrangement, up to IP65. Self-locking gearset, multiple accuracy levels, metric or inch mounting.
Performance
| Model | FGA12 |
|---|---|
| Series | FGA Series |
| Type | Enclosed hourglass-worm slewing drives with cup seal |
| Max. output torque | 5,214 N·m (3,846 lbf-ft) |
| Max. tilting moment | 54,300 N·m (40,052 lbf-ft) |
| Holding torque | 45,000 N·m (33,192 lbf-ft) |
| Max. axial load | 475 kN (106,780 lbf) |
| Max. radial load | 190 kN (42,712 lbf) |
| Gear ratio | 78:1 |
| Backlash | 0.17° |
Maximum ratings. Our engineers will confirm the drive for your duty cycle.
Load chart

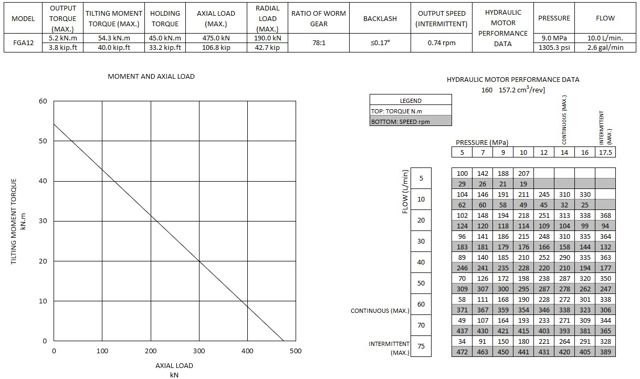

Tilting moment vs. axial load. Click to enlarge.
Get this drive
Standard lead time 14–16 weeks; expediting available for an additional charge. Pricing quoted within 1–2 business days. 3D models available on request.
Request a Quote1 FGA12 configuration on file
Drives we have already engineered: with hydraulic motors, DC gear motors, SEW-EURODRIVE or NORD AC gear motors integrated in-house, planetary gearboxes, encoders and brakes, or built to mate with the customer’s own gearbox or motor. Click a configuration to see what it includes. Need something different? New designs are added often.
FGA12-78B-BH-R-160-AHydraulic motor
| Hydraulic motor | 160 cc/rev displacement |
|---|---|
| Motor ports | away from worm housing |
| Hydraulic pressure | 9 MPa (1,305 psi) |
| Hydraulic flow | 10 L/min (2.6 gpm) |
| Output speed | 0.74 rpm |
| Input | 6B spline bore (21.8 mm) |
| Worm far end | Hex head (manual drive) |
| Worm hand | Right hand |
| Ratio | 78:1 |
| Mounting threads | Inch (UNC) |
| Mounting holes | Blind threaded holes on inner and outer rings |
| 3D model | Available on request |
