4 DP17 teethBolt-on bore

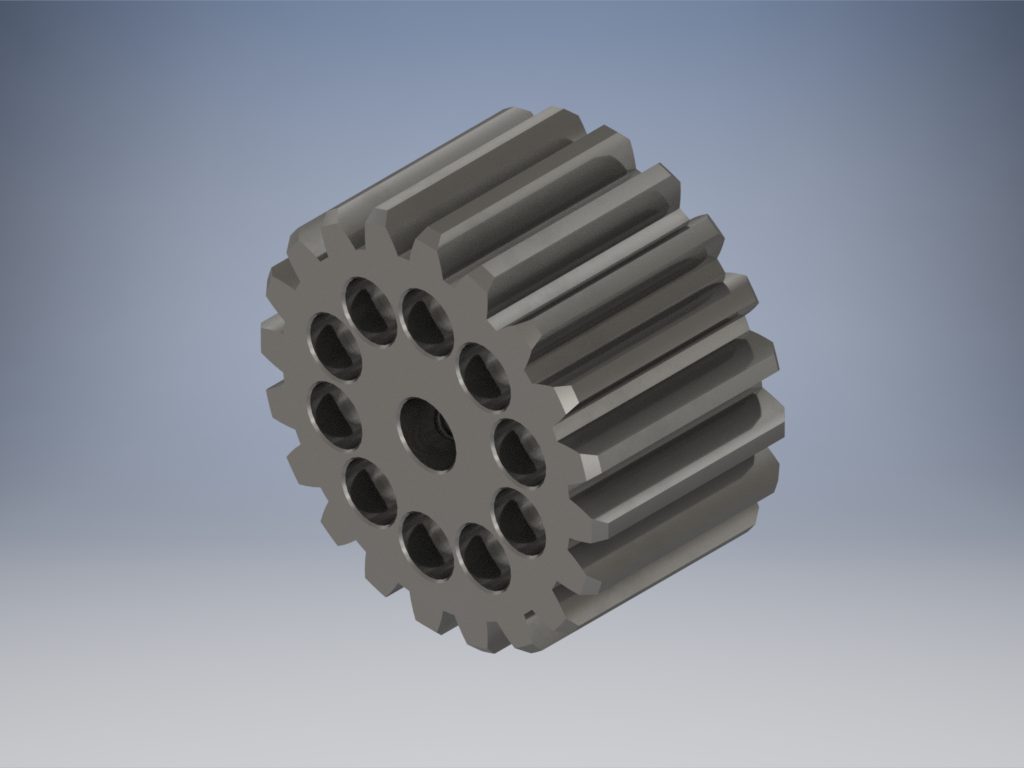

P004.17.250.NB.000 Pinion
SlewPro pinion P004.17.250.NB.000: 17 teeth, 4 DP, 4.250" pitch diameter, 2.50" face, bolt-on bore 0.500". Built to order for slewing ring gear drives.
Specifications
| Part number | P004.17.250.NB.000 |
|---|---|
| Diametral pitch | 4 DP |
| Number of teeth | 17 |
| Pitch diameter | 4.250 in |
| Pressure angle | 20° |
| Tooth form | Involute Stub |
| Face width | 2.50 in |
| Outside diameter | 4.650 in |
| Hub | No hub |
| Bore type | Bolt-on |
| Bore diameter | 0.500 in (12.7 mm) |
| Bore detail | 10X Ø.35 THRU on 2.75" bolt circle |
| Material | 4140 steel |
| Core hardness | 250/300 HB |
| Approx. weight | 9 lb |
From our engineering drawing and 3D model. Need a different bore or face width? We modify pinions to suit.
