FDA14 Slewing Drive
Two slewing drives combined for two-axis positioning. Two worm slewing drives mounted at 90° in one assembly, each with its own motor, to rotate and tilt a payload on two axes. Available with hard stops and zero marks for limited-travel positioning.
Performance
| Model | FDA14 |
|---|---|
| Series | Dual-Axis Drives (FGD, FDA) |
| Type | Two slewing drives combined for two-axis positioning |
| Max. output torque | 10,880 N·m (8,025 lbf-ft) |
| Max. tilting moment | 48,000 N·m (35,405 lbf-ft) |
| Holding torque | 48,000 N·m (35,405 lbf-ft) |
| Max. axial load | 67 kN (15,062 lbf) |
| Max. radial load | 150 kN (33,720 lbf) |
| Gear ratio | 85:1 |
| Backlash | 0.17° |
Maximum ratings. Our engineers will confirm the drive for your duty cycle.

Get this drive
Standard lead time 14–16 weeks; expediting available for an additional charge. Pricing quoted within 1–2 business days. 3D models available on request.
Request a Quote1 FDA14 configuration on file
Drives we have already engineered: with hydraulic motors, DC gear motors, SEW-EURODRIVE or NORD AC gear motors integrated in-house, planetary gearboxes, encoders and brakes, or built to mate with the customer’s own gearbox or motor. Click a configuration to see what it includes. Need something different? New designs are added often.

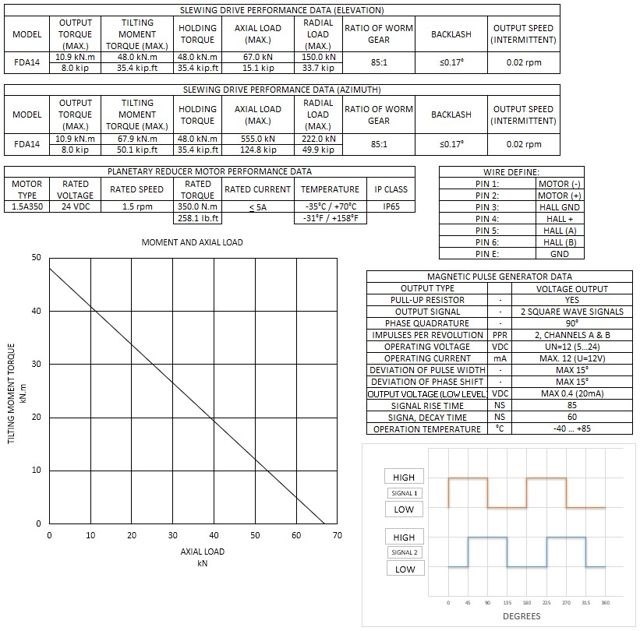

FDA14-85M-R-1.5AH350-C00524 V DC electric gear motor
| Electric motor | 24 V DC gear motor, 1.5 rpm, 350 N·m rated output torque |
|---|---|
| Feedback | Hall-effect sensors (A/B quadrature) |
| Output speed | 0.018 rpm |
| Worm hand | Right hand |
| Ratio | 85:1 |
| Mounting threads | Metric |
| Mounting holes | Blind threaded holes on inner and outer rings |
| Version | Customer-specific variant |
| 3D model | Available on request |
Mounting, bolt torques, every grease point identified on a SlewPro drawing, greases you can buy locally, relubrication intervals, hydraulic and electric motors, encoders, and the warning signs to act on.
